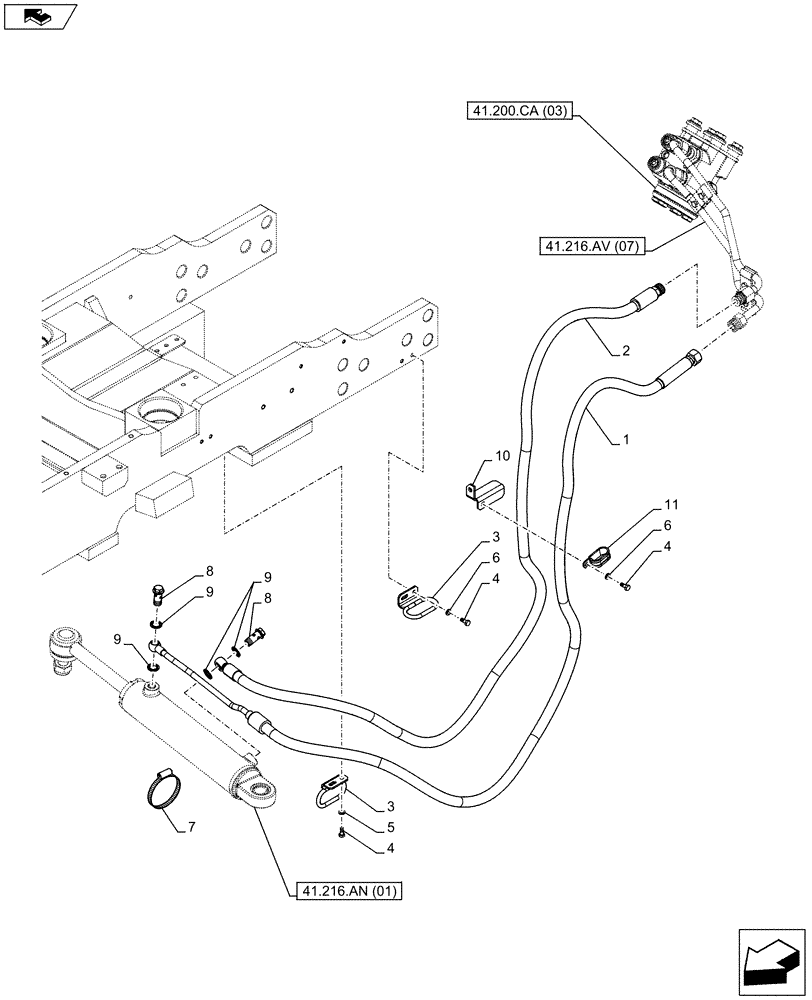

Запчасти Case IH FARMALL 115C (41.216.AV[08]) - VAR - 330581 - STEERING VALVE, HYDR LINES - 2WD (41) - STEERING

1

84484440

HYD TUBE

RH, Steering Cylinder

1шт.

2

84484442

HYDRAULIC HOSE,9.5mm ID x 1950.5mm L, SAE 100R2

LH, Steering Cylinder

1шт.

3

84484669

BRACKET

2шт.

4

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

5шт.

5

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

6

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

3шт.

7

13000990

COLLAR,60mm - 80mm, Worm Gear

D= 60 x 80 mm

1шт.

8

87736840

BOLT,M14 x 1.5 x 30mm

M14 x 1.5 x 30

2шт.

9

87667804

SEAL,14.0mm ID x 22mm OD x 1.5mm Thk

M14

4шт.

10

84496505

BRACKET

1шт.

11

10115901

CLAMP,18mm, 7mm Bolt Hole, P Type

1шт.
