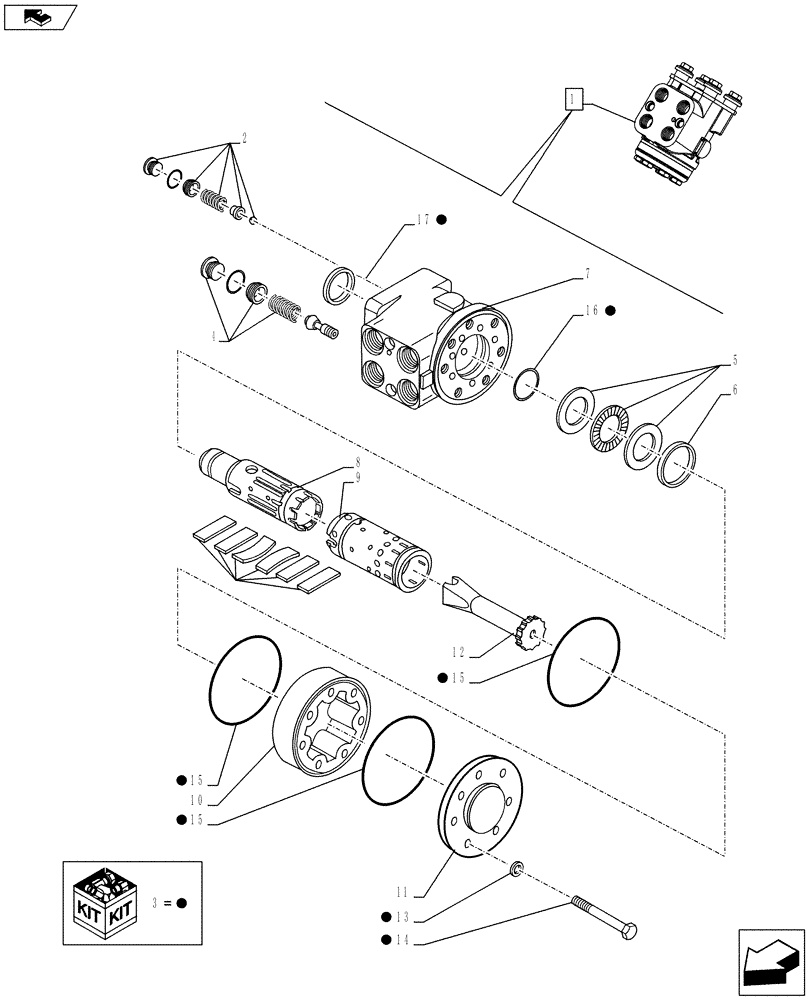

Запчасти Case IH FARMALL 115C (41.200.CA[05]) - VAR - 330581 - STEERING VALVE - 2WD, COMPONENTS (41) - STEERING

1

5196525

HYDRAULIC STEERING,80CC, 170 Bar

ASSY, Incl 2-12

1шт.

2

5196609

KIT

Anti-shock valve

1шт.

3

5196607

SEAL KIT

Seals, ASSY, Incl 13-17

1шт.

4

5196608

KIT

Relief valve

1шт.

5

5196528

BEARING ASSY

Bearings

1шт.

6

5196606

KIT

Springs

1шт.

7

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Sleeve, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Gearwheel, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

End cover, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Cardan shaft, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Washer, Incl in 3

7шт.

14

NSS

NOT SOLD SEPARAT

Screw, Incl in 3

7шт.

15

NSS

NOT SOLD SEPARAT

Seal, Incl in 3

3шт.

16

NSS

NOT SOLD SEPARAT

Seal, Incl in 3

1шт.

17

NSS

NOT SOLD SEPARAT

Dust seal ring, Incl in 3

1шт.
