(39.140.AL[01]) - VAR - 330470 - WHEEL WEIGHT, REAR - ISO

Запчасти Case IH FARMALL 115C (39.140.AL[01]) - VAR - 330470 - WHEEL WEIGHT, REAR - ISO (39) - FRAMES AND BALLASTING

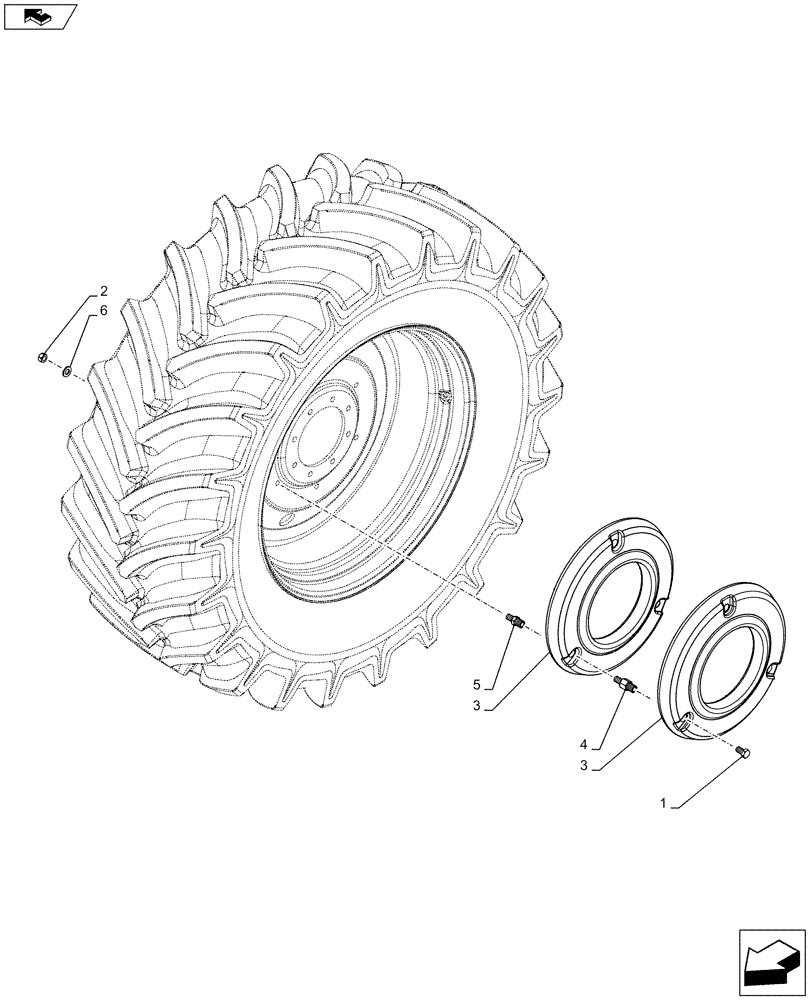

Схема запчастей Case IH FARMALL 115C - (39.140.AL[01]) - VAR - 330470 - WHEEL WEIGHT, REAR - ISO (39) - FRAMES AND BALLASTING
6
3
4
1
home
2
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

2

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

6шт.

3

47131052

WHEEL WEIGHT,50Kg/110Lb

4шт.

4

44018047

SCREW,M16 x 1.5 x 78mm

6шт.

5

44018046

SCREW,M16 x 1.5 x 60mm

6шт.

6

12164114

NUT,Hex, M16, 1.5mm Pitch, 13mm High, Cl 8

6шт.
