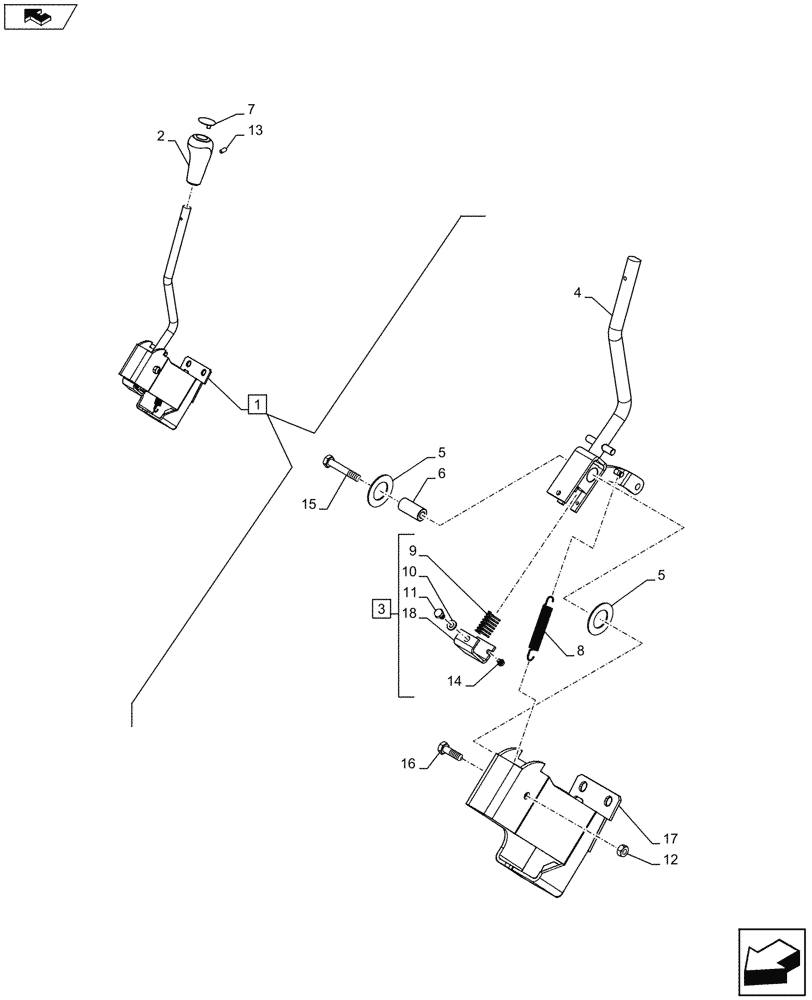

Запчасти Case IH FARMALL 115C (37.106.AG[01]) - VAR - 330772, 334203 - AUTOMATIC HITCH (GERMANY), CONTROL LEVER - COMPONENTS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47404676

CONTROL LEVER

ASSY, Incl 3 - 6, 8 - 12, 14 - 18

1шт.

2

84209536

KNOB

1шт.

3

47403910

CONTROL LEVER

ASSY, Incl 4, 9 - 11, 14, 18

1шт.

4

NSS

NOT SOLD SEPARAT

LEVER, Incl in 1

1шт.

5

84559655

WASHER,24mm ID x 42mm OD x 1.5mm, Thick

2шт.

6

84525713

SPACER,8mm ID x 16mm OD x 33.5mm L

1шт.

7

84562993

DECAL

1шт.

8

5161411

SPRING,Extension, 12mm OD x 80mm L

1шт.

9

84525687

SPRING,Compression, 18.6mm OD x 28mm L

1шт.

10

10297860

SEAL,6mm ID x 12mm OD x 1.5mm Thk

1шт.

11

10902114

BOLT,Hex, M6 x 14mm, Cl 5.8, Full Thd

1шт.

12

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

13

47471574

SET SCREW,Hex, M5 x 16mm L

1шт.

14

14304121

HEX SOC SCREW,M5 x 12mm, Cl 8.8

2шт.

15

16044224

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

16

16043611

BOLT,Hex, M8 x 1.25 x 25mm, Cl 5.8, Full Thd

1шт.

17

84577227

BRACKET

1шт.

18

NSS

NOT SOLD SEPARAT

BRACKET, Incl in 3

1шт.
