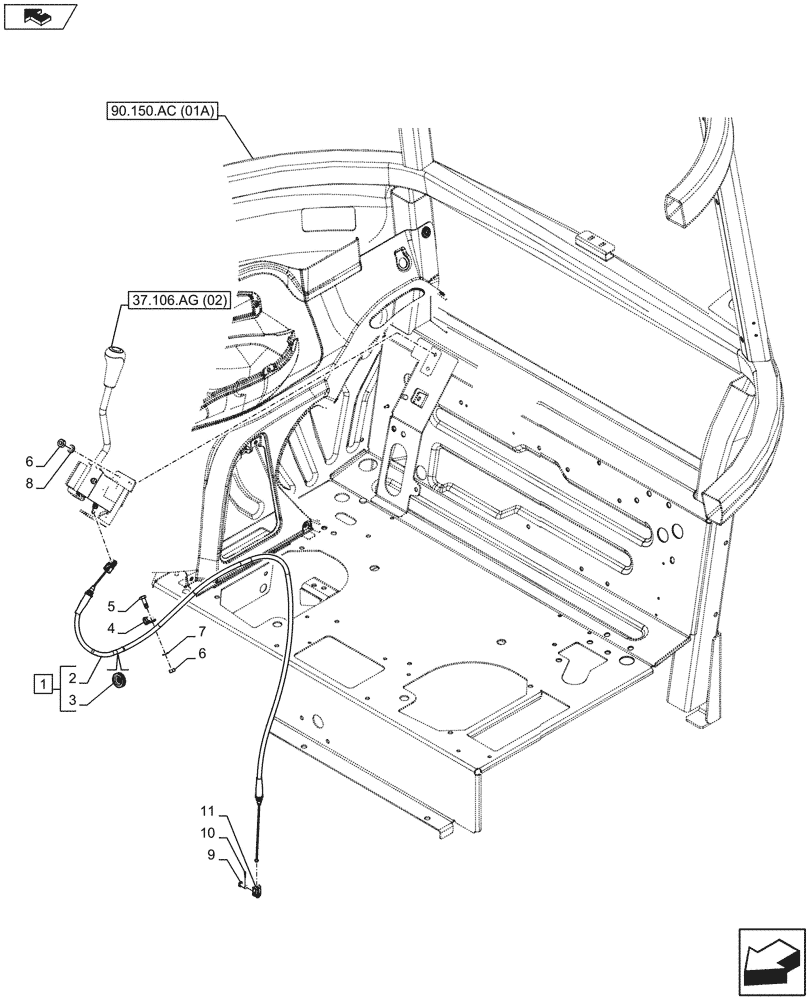

Запчасти Case IH FARMALL 115C (37.106.AE[04]) - VAR - 334208 - AUTOMATIC HITCH, CONTROL, CABLE, CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84536554

THROTTLE CONTROL

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Cable, Incl in 1

1шт.

3

84325372

GROMMET,9mm ID x 30mm OD x 9mm L

1шт.

4

10450190

CLAMP,10mm, Coat, 9mm Bolt Hole, P Type

1шт.

5

16043680

BOLT,Hex, M8 x 1.25 x 25mm, Full Thd

1шт.

6

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

7

14499401

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

3шт.

8

11087374

CIRCLIP,M13

1шт.

9

10040711

CLEVIS PIN,8mm OD x 18mm L

M8 x 18 Type A R50 IND ZND

2шт.

10

10794401

COTTER PIN,M2 x 10

2шт.

11

47464602

FORK

1шт.
