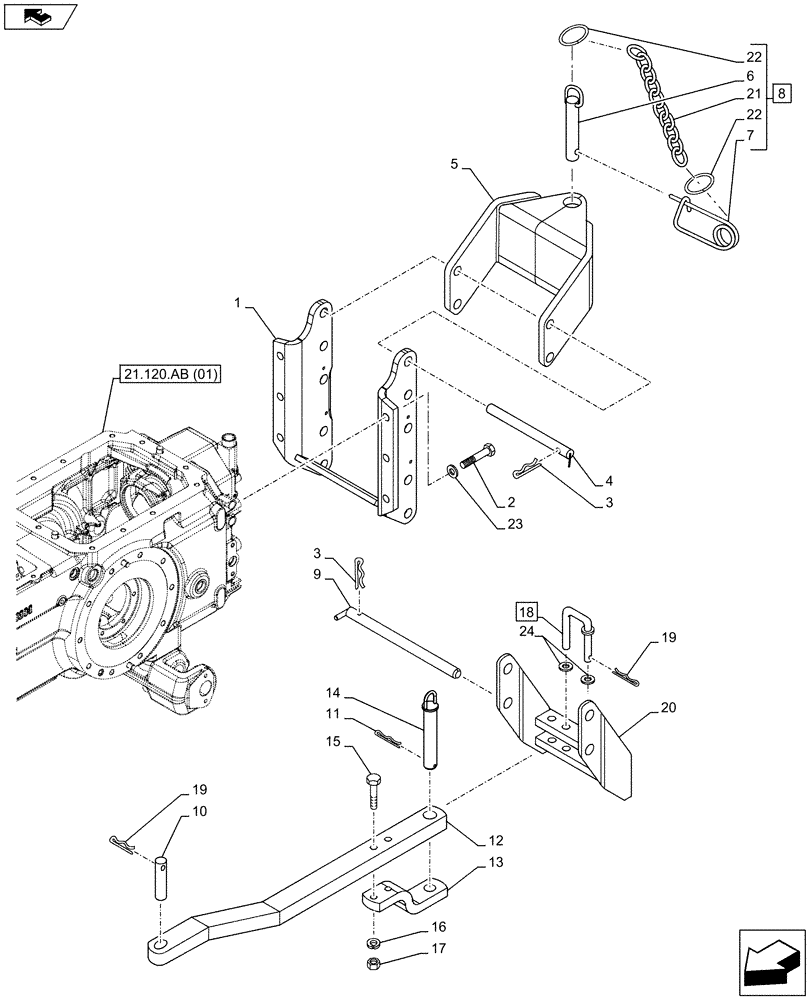

Запчасти Case IH FARMALL 115C (37.106.AA[09]) - VAR - 334197 - TOWING EQUIPMENT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

5199412

SUPPORT

1шт.

2

15981834

BOLT,Hex, M16 x 1.5 x 120mm, Cl 10.9

6шт.

3

44007661

COTTER PIN,33.2mm OD x 78mm L

4шт.

4

5124424

LOCK PIN

2шт.

5

5199398

TOW HOOK

1шт.

6

573185

HITCH PIN,28mm OD x 152mm L

1шт.

7

5152004

HAIR PIN COTTER,195mm L

1шт.

8

5162712

PIN

ASSY, Incl 6, 7, 21, 22

1шт.

9

5117437

PIN,22mm OD x 325mm L

2шт.

10

5153813

PIN,28mm OD x 85mm L

1шт.

11

578668

COTTER PIN,10.7mm OD x 80mm L

1шт.

12

5128655

DRAWBAR,750mm L x 60mm W x 30mm Thk, 26mm Offset

1шт.

13

598607

SUPPORT

1шт.

14

596060

HITCH PIN,28mm OD x 192mm L

1шт.

15

15984834

SCREW,Hex, M18 x 1.5 x 80mm, Cl 10.9

2шт.

16

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

2шт.

17

10721024

NUT,M18 x 1.5, Cl 10

2шт.

18

5101047

LOCK PIN

ASSY, Incl 24

1шт.

19

5112606

COTTER PIN,2.5mm OD x 66.5mm L

2шт.

20

5124426

DRAWBAR FRAME

1шт.

21

596063

LINK CHAIN,13 Links x 18mm = 234mm L

1шт.

22

44901192

SNAP RING,25mm ID

2шт.

23

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

6шт.

24

10520404

WASHER,21mm ID x 35mm OD x 4mm Thk

2шт.
