Запчасти Case IH FARMALL 115C (35.220.AG[01]) - VAR - 332785, 390831, 743595, 743596 - HYDRAULIC OIL FILTER, SUCTION TUBE (35) - HYDRAULIC SYSTEMS

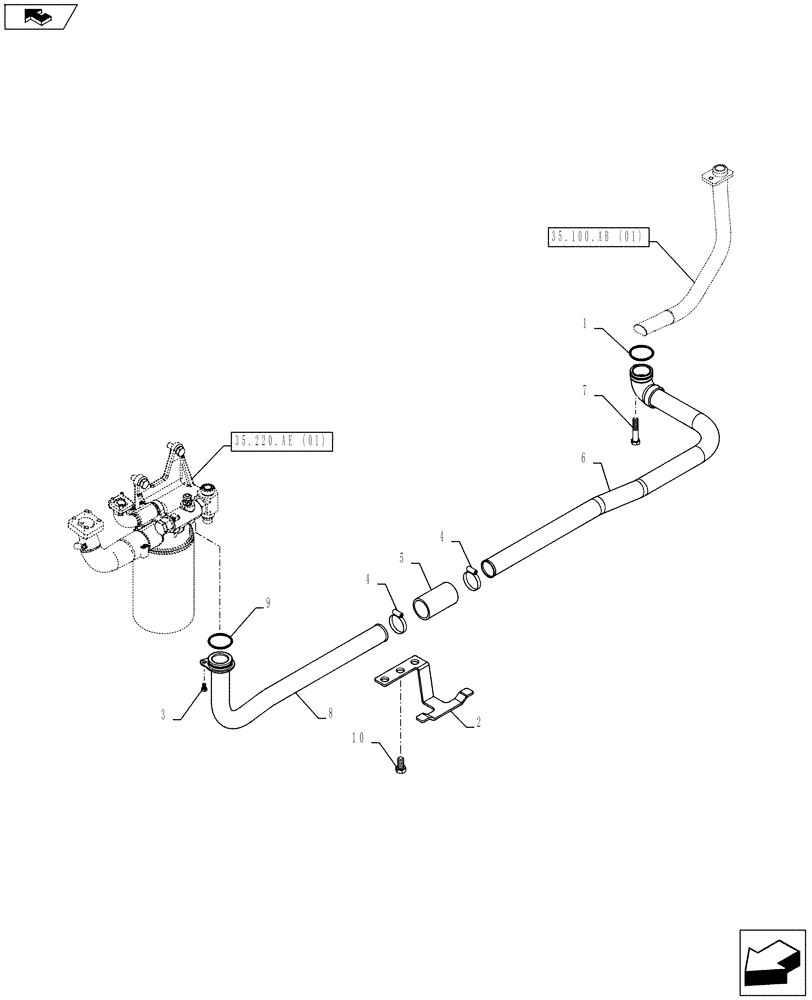

Схема запчастей Case IH FARMALL 115C - (35.220.AG[01]) - VAR - 332785, 390831, 743595, 743596 - HYDRAULIC OIL FILTER, SUCTION TUBE (35) - HYDRAULIC SYSTEMS
5
35.100.ab (01)
9
8
4
4
6
35.220.ae (01)
2
1
7
10
home
3

Артикул

Название

Примечание

Количество

1

5174527

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

2

47393719

BRACKET

1шт.

3

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

4

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

4шт.

5

47128011

SLEEVE

1шт.

6

84550299

TUBE

1шт.

7

15541121

SCREW,Hex, M12 x 1.25 x 65mm, Cl 8.8

1шт.

8

47393715

TUBE

1шт.

9

14464580

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

1шт.

10

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

Выбрано товаров: 10
