(35.204.BL[06]) - VAR - 743570, 743571 - REMOTE CONTROL VALVE, CONTROL LEVER (3 REMOTES) - ISO

Запчасти Case IH FARMALL 115C (35.204.BL[06]) - VAR - 743570, 743571 - REMOTE CONTROL VALVE, CONTROL LEVER (3 REMOTES) - ISO (35) - HYDRAULIC SYSTEMS

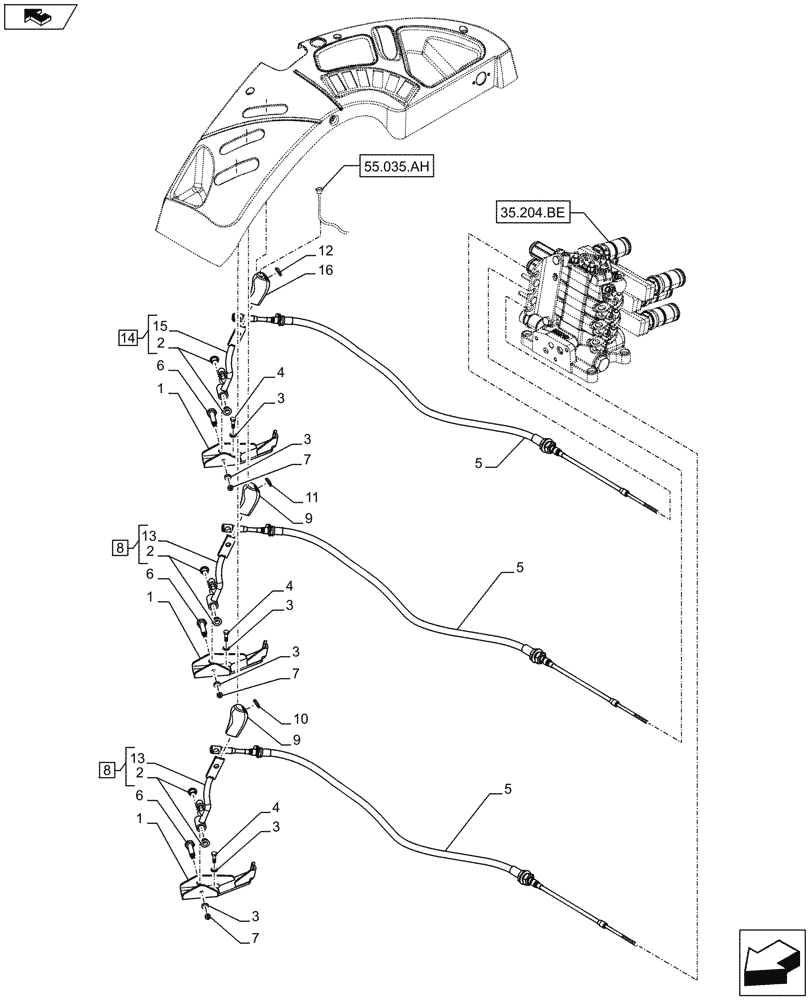

Схема запчастей Case IH FARMALL 115C - (35.204.BL[06]) - VAR - 743570, 743571 - REMOTE CONTROL VALVE, CONTROL LEVER (3 REMOTES) - ISO (35) - HYDRAULIC SYSTEMS
8
13
7
15
10
4
6
1
3
6
1
7
4
14
9
3
1
7
2
5
2
55.035.ah
2
4
3
3
5
home
35.204.be
8
12
16
1
5
13
9
3
1
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84295559

SUPPORT

3шт.

2

84295562

BUSHING,10mm ID x 12mm OD x 10mm L

4шт.

3

10260860

SEALING WASHER,M8.2 x 14 x 1.5, Copper

9шт.

4

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

5

47384432

THROTTLE CONTROL

3шт.

6

84302881

PIN,16.2mm OD x 49.5mm L

3шт.

7

12575411

LOCK NUT,M6 x 1, Cl 8

3шт.

8

84395524

LEVER

ASSY, Incl 2, 13

2шт.

9

47381094

KNOB,Black

Black

2шт.

10

87698505

DATA PLAQUE

Green

1шт.

11

87698506

DATA PLAQUE

Blue

1шт.

12

87698516

DATA PLAQUE

Ginger

1шт.

13

NSS

NOT SOLD SEPARAT

Lever, Incl in 8

1шт.

14

47381164

LEVER

ASSY, Incl 2, 15

1шт.

15

NSS

NOT SOLD SEPARAT

Lever, Incl in 14

1шт.

16

47381080

KNOB,Black

Black

1шт.
