(35.204.BL[05]) - VAR - 334195, 336108 - REMOTE CONTROL VALVE, CONTROL LEVER (3 REMOTES HI-LO)

Запчасти Case IH FARMALL 115C (35.204.BL[05]) - VAR - 334195, 336108 - REMOTE CONTROL VALVE, CONTROL LEVER (3 REMOTES HI-LO) (35) - HYDRAULIC SYSTEMS

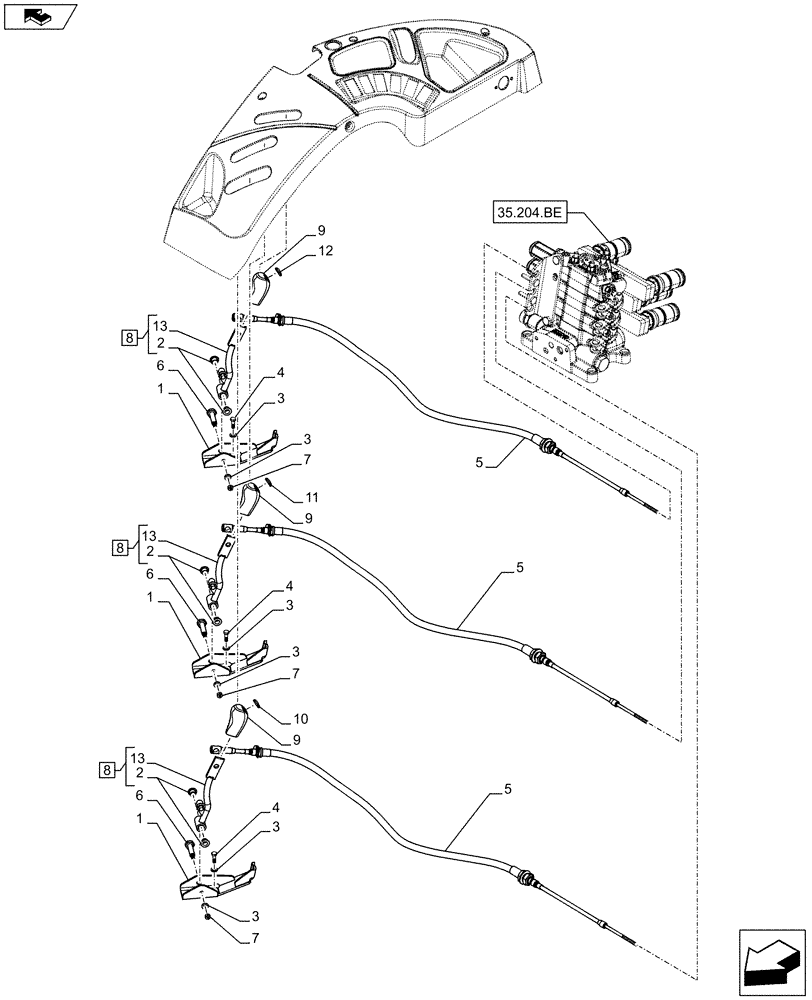

Схема запчастей Case IH FARMALL 115C - (35.204.BL[05]) - VAR - 334195, 336108 - REMOTE CONTROL VALVE, CONTROL LEVER (3 REMOTES HI-LO) (35) - HYDRAULIC SYSTEMS
7
8
4
1
6
5
3
3
6
7
2
3
3
4
1
13
3
12
3
2
1
13
8
9
9
11
2
10
7
35.204.be
4
5
8
6
home
9
5
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84295559

SUPPORT

3шт.

2

84295562

BUSHING,10mm ID x 12mm OD x 10mm L

2шт.

3

10260860

SEALING WASHER,M8.2 x 14 x 1.5, Copper

9шт.

4

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

5

47384432

THROTTLE CONTROL

3шт.

6

84302881

PIN,16.2mm OD x 49.5mm L

3шт.

7

12575411

LOCK NUT,M6 x 1, Cl 8

3шт.

8

84395524

LEVER

ASSY, Incl 2, 13

3шт.

9

47381094

KNOB,Black

Black

3шт.

10

87698505

DATA PLAQUE

Green

1шт.

11

87698506

DATA PLAQUE

Blue

1шт.

12

87698516

DATA PLAQUE

Ginger

1шт.

13

NSS

NOT SOLD SEPARAT

Lever, Incl in 8

1шт.
