(35.204.BL[04]) - VAR - 334195, 336108 - REMOTE CONTROL VALVE, CONTROL LEVER (3 REMOTES) - ISO

Запчасти Case IH FARMALL 115C (35.204.BL[04]) - VAR - 334195, 336108 - REMOTE CONTROL VALVE, CONTROL LEVER (3 REMOTES) - ISO (35) - HYDRAULIC SYSTEMS

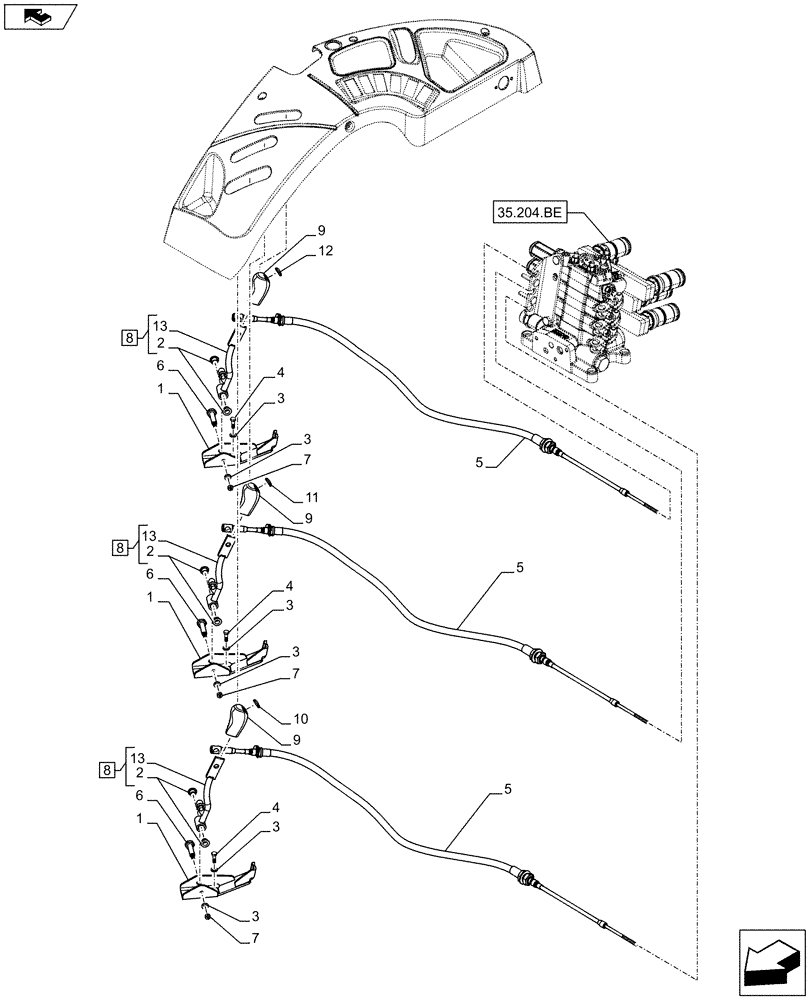

Схема запчастей Case IH FARMALL 115C - (35.204.BL[04]) - VAR - 334195, 336108 - REMOTE CONTROL VALVE, CONTROL LEVER (3 REMOTES) - ISO (35) - HYDRAULIC SYSTEMS
3
10
13
12
4
5
9
13
1
7
8
3
3
5
4
11
8
8
2
9
35.204.be
5
6
1
7
6
9
home
4
2
3
3
6
13
2
3
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84295559

SUPPORT

3шт.

2

84295562

BUSHING,10mm ID x 12mm OD x 10mm L

2шт.

3

10260860

SEALING WASHER,M8.2 x 14 x 1.5, Copper

9шт.

4

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

5

47384432

THROTTLE CONTROL

3шт.

6

84302881

PIN,16.2mm OD x 49.5mm L

3шт.

7

12575411

LOCK NUT,M6 x 1, Cl 8

3шт.

8

84395524

LEVER

ASSY, Incl 2, 13

3шт.

9

47381094

KNOB,Black

Black

3шт.

10

87698505

DATA PLAQUE

Green

1шт.

11

87698506

DATA PLAQUE

Blue

1шт.

12

87698516

DATA PLAQUE

Ginger

1шт.

13

NSS

NOT SOLD SEPARAT

Lever, Incl in 8

1шт.
