(35.204.BE[21]) - VAR - 334195 – REMOTE CONTROL VALVE, BLOCK, COMPONENTS (3 REMOTES HI - LO)

Запчасти Case IH FARMALL 115C (35.204.BE[21]) - VAR - 334195 – REMOTE CONTROL VALVE, BLOCK, COMPONENTS (3 REMOTES HI - LO) (35) - HYDRAULIC SYSTEMS

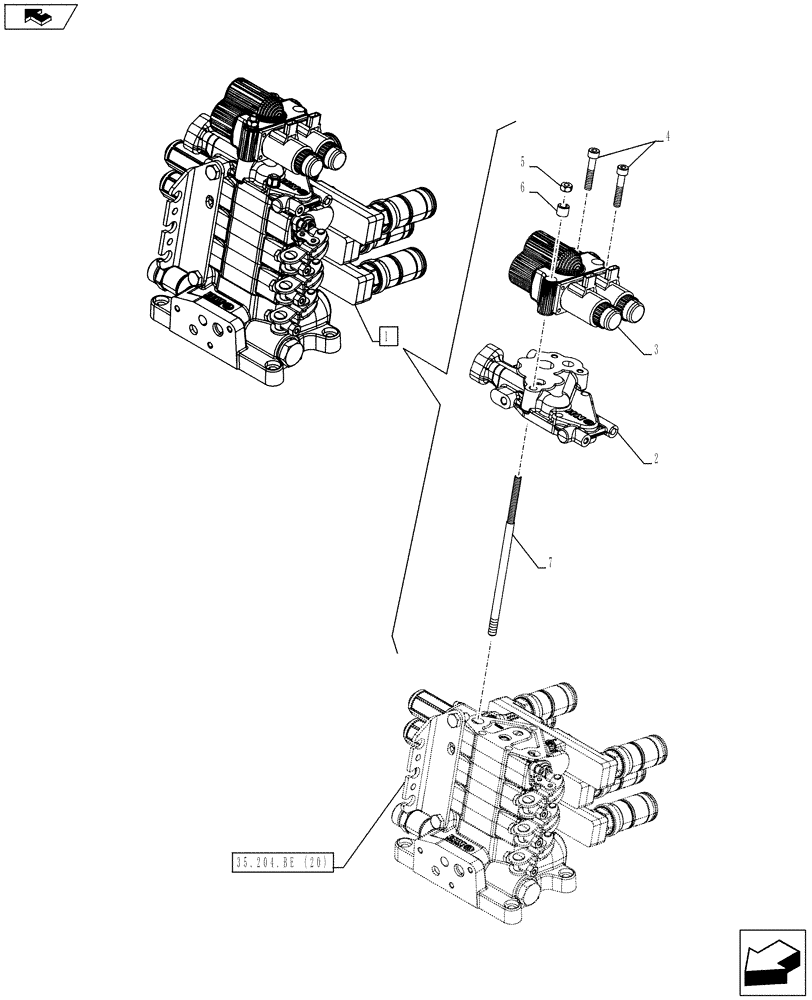

Схема запчастей Case IH FARMALL 115C - (35.204.BE[21]) - VAR - 334195 – REMOTE CONTROL VALVE, BLOCK, COMPONENTS (3 REMOTES HI - LO) (35) - HYDRAULIC SYSTEMS
3
6
4
1
5
35.204.be (20)
2
home
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47396611

DISTRIBUTOR

ASSY, Distributor 3 Remotes, Incl 2 - 7

1шт.

2

87396841

FLANGE

1шт.

3

87551652

CONTROL VALVE

1шт.

4

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

2шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

6

47136143

SPACER,8.5mm ID x 14mm OD x 12mm L

1шт.

7

87325125

STUD

1шт.
