(35.204.BE[18]) - VAR - 743570 – REMOTE CONTROL VALVE, BLOCK, COMPONENTS (3 REMOTES HI - LO)

Запчасти Case IH FARMALL 115C (35.204.BE[18]) - VAR - 743570 – REMOTE CONTROL VALVE, BLOCK, COMPONENTS (3 REMOTES HI - LO) (35) - HYDRAULIC SYSTEMS

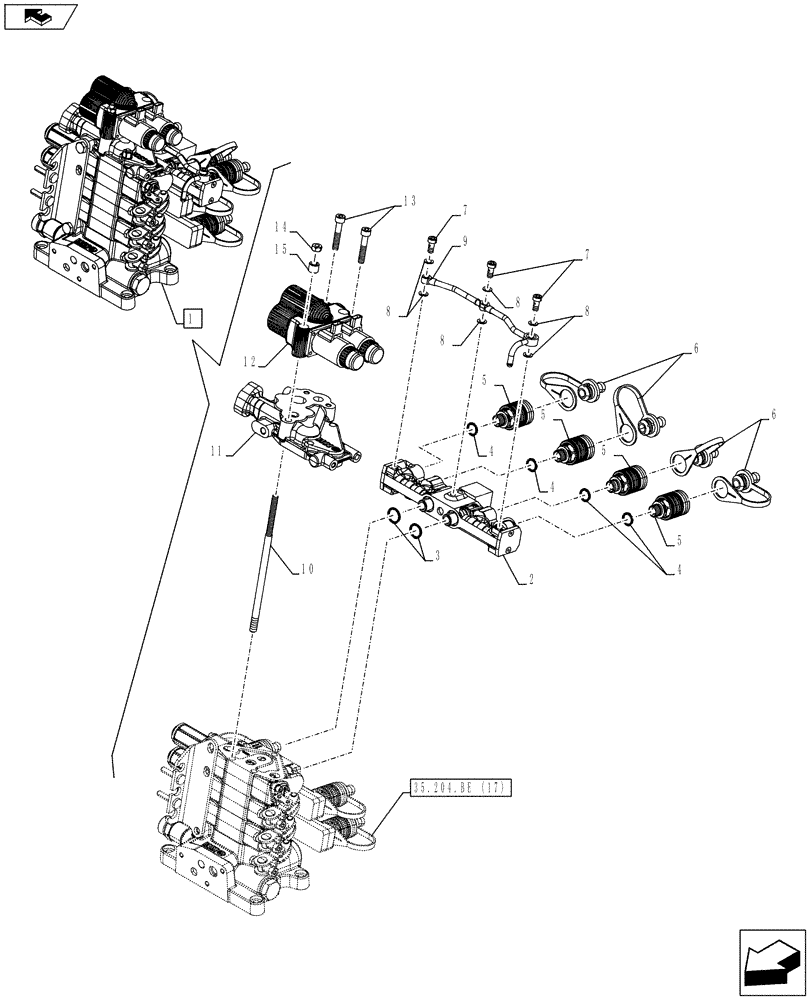

Схема запчастей Case IH FARMALL 115C - (35.204.BE[18]) - VAR - 743570 – REMOTE CONTROL VALVE, BLOCK, COMPONENTS (3 REMOTES HI - LO) (35) - HYDRAULIC SYSTEMS
12
8
6
10
8
11
6
2
4
7
9
13
7
5
5
5
8
5
14
4
4
3
8
15
35.204.be (17)
home
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47393905

DISTRIBUTOR

ASSY, Distributor 3 Remotes, Incl 2 - 15

1шт.

2

47131019

BODY

1шт.

3

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

6шт.

4

14437985

O-RING,15.3mm ID x 2.4mm

8шт.

5

5179556

COUPLING, QUICK, FEM,Hex, M18 x 1.5 x 63.3mm L

4шт.

6

5179578

PLUG,24mm, Brown

Brown

4шт.

7

5175070

BANJO BOLT,M8 x 1.25 x 24mm

3шт.

8

10260060

SEALING WASHER,8.2mm ID x 14mm OD x 1mm Thk

6шт.

9

84422038

PIPE

1шт.

10

87325125

STUD

1шт.

11

87396841

FLANGE

1шт.

12

87551652

CONTROL VALVE

1шт.

13

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

2шт.

14

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

15

47136143

SPACER,8.5mm ID x 14mm OD x 12mm L

1шт.
