Запчасти Case IH FARMALL 115C (35.204.BE[17]) - VAR - 743570 – REMOTE CONTROL VALVE, BLOCK, COMPONENTS (3 REMOTES HI - LO) (35) - HYDRAULIC SYSTEMS

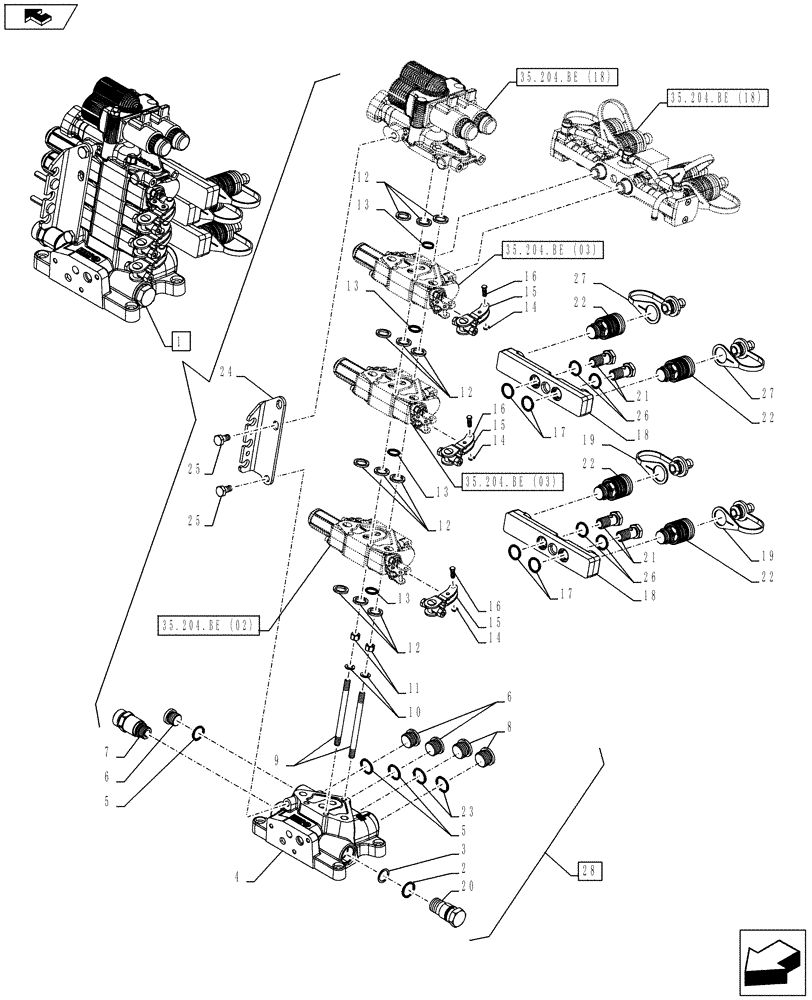

Схема запчастей Case IH FARMALL 115C - (35.204.BE[17]) - VAR - 743570 – REMOTE CONTROL VALVE, BLOCK, COMPONENTS (3 REMOTES HI - LO) (35) - HYDRAULIC SYSTEMS
13
14
18
22
13
23
1
24
10
home
12
8
13
2
16
12
14
9
16
15
22
19
27
26
14
5
21
35.204.be (03)
6
12
22
28
17
17
16
13
35.204.be (03)
3
35.204.be (02)
15
27
18
20
25
25
7
12
5
6
21
19
4
22
35.204.be (18)
15
26
11
35.204.be (18)

Артикул

Название

Примечание

Количество

1

47393905

DISTRIBUTOR

ASSY, Distributor 3 Remotes, Incl 2 - 28

1шт.

2

14453980

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

3

10263360

SEAL,20.3mm ID x 26mm OD x 1mm Thk

1шт.

4

NSS

NOT SOLD SEPARAT

Manifold Valve Housing, Incl in 28

1шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

6

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

3шт.

7

47125148

HYD CONNECTOR

1шт.

8

10119011

PLUG,M27 x 2 x 20, Cl5.8

2шт.

9

5151506

THREADED ROD,3/8" - 24 x 6-5/8"

2шт.

10

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

2шт.

11

5116857

NUT,3/8" - 24

2шт.

12

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

12шт.

13

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

4шт.

14

11087776

CIRCLIP,Ext., M6, BLO

3шт.

15

84282370

CONTROL LEVER

3шт.

16

5172456

PIN,6mm OD x 20mm L

3шт.

17

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

4шт.

18

5185533

HYD CONNECTOR

2шт.

19

5179576

PLUG,24mm, Green

Green

2шт.

20

84563631

PLUG,M28 x 1.5

1шт.

21

5168481

BANJO BOLT,M18 x 1.5 x 38mm

4шт.

22

5179557

COUPLING, QUICK, FEM

4шт.

23

14438185

O-RING,24mm ID x 3mm

2шт.

24

84567496

BRACKET

1шт.

25

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

26

14437985

O-RING,15.3mm ID x 2.4mm

8шт.

27

5179577

PLUG,24mm, Blu

Blue

2шт.

28

84563608

MANIFOLD VALVE

ASSY, Manifold Valve, Incl 2 - 6, 8, 20, 23

1шт.

Выбрано товаров: 28
