Запчасти Case IH FARMALL 115C (35.204.BE[11]) - VAR - 743571 - REMOTE CONTROL VALVE, BLOCK, COMPONENTS (3 REMOTES) - ISO (35) - HYDRAULIC SYSTEMS

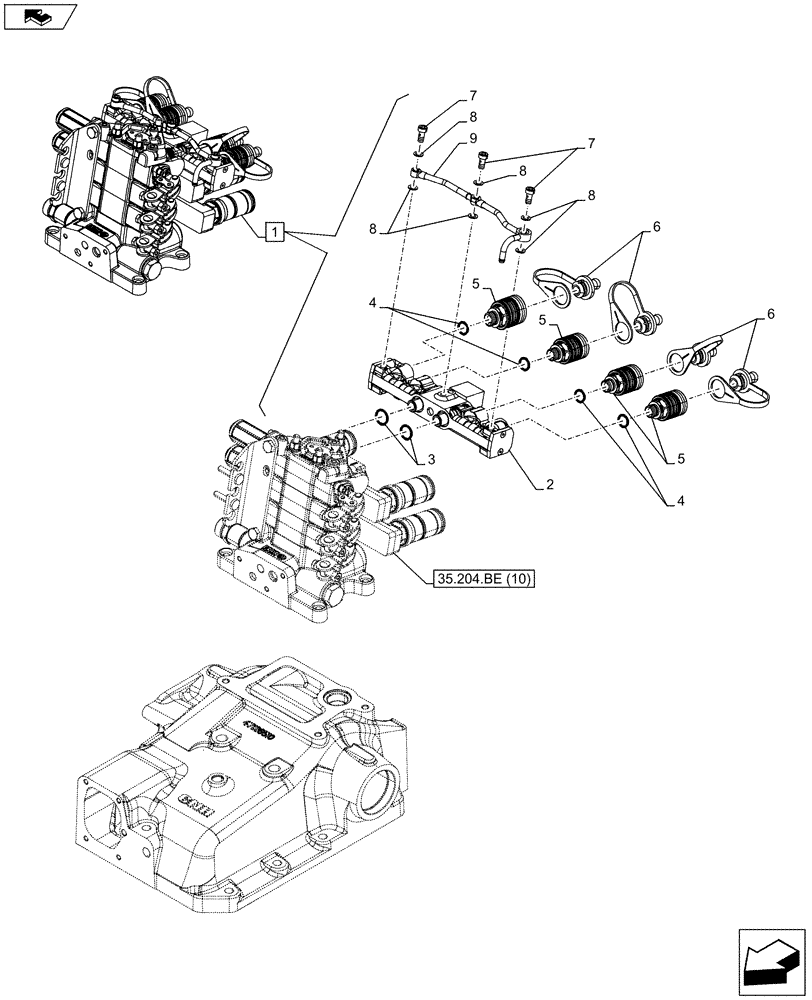

Схема запчастей Case IH FARMALL 115C - (35.204.BE[11]) - VAR - 743571 - REMOTE CONTROL VALVE, BLOCK, COMPONENTS (3 REMOTES) - ISO (35) - HYDRAULIC SYSTEMS
7
8
4
5
6
home
3
1
7
8
4
6
5
2
5
35.204.be (10)
8
9
8

Артикул

Название

Примечание

Количество

1

47394440

DISTRIBUTOR

ASSY, Distributor 3 Remotes, Incl 2 - 9

1шт.

2

47131019

BODY

1шт.

3

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

6шт.

4

14437985

O-RING,15.3mm ID x 2.4mm

8шт.

5

5179556

COUPLING, QUICK, FEM,Hex, M18 x 1.5 x 63.3mm L

4шт.

6

5179578

PLUG,24mm, Brown

4шт.

7

5175070

BANJO BOLT,M8 x 1.25 x 24mm

3шт.

8

10260060

SEALING WASHER,8.2mm ID x 14mm OD x 1mm Thk

6шт.

9

84422038

PIPE

Return

1шт.

Выбрано товаров: 9
