(35.104.AA[04]) - VAR - 743524 - REAR LIFT PUMP (25CC)

Запчасти Case IH FARMALL 115C (35.104.AA[04]) - VAR - 743524 - REAR LIFT PUMP (25CC) (35) - HYDRAULIC SYSTEMS

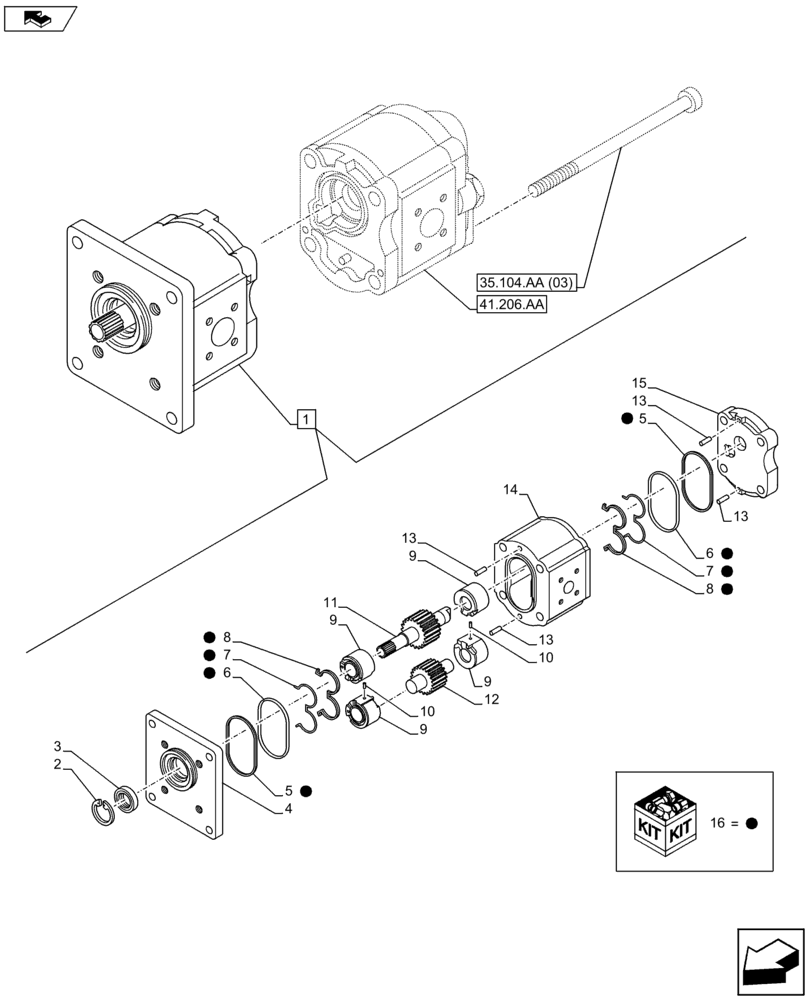

Схема запчастей Case IH FARMALL 115C - (35.104.AA[04]) - VAR - 743524 - REAR LIFT PUMP (25CC) (35) - HYDRAULIC SYSTEMS
16
9
16
13
8
13
15
16
8
16
13
13
9
5
14
41.206.aa
3
16
10
35.104.aa (03)
16
5
2
9
16
11
12
7
10
home
6
9
6
16
16
1
7
4
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47499276

HYDRAULIC PUMP,Gear, 25CC

25CC, Rear Lift, ASSY, Incl 2 - 16

1шт.

2

11058870

CIRCLIP,30mm ID

1шт.

3

87311809

SEAL

1шт.

4

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Seal, Incl in 16

1шт.

6

NSS

NOT SOLD SEPARAT

Seal, Incl in 16

1шт.

7

NSS

NOT SOLD SEPARAT

Seal, Incl in 16

1шт.

8

NSS

NOT SOLD SEPARAT

Seal, Incl in 16

1шт.

9

NSS

NOT SOLD SEPARAT

Bushing, Inci in 1

4шт.

10

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

2шт.

11

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

4шт.

14

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

16

87493116

SEAL KIT

KIT, Incl 5 - 8

1шт.
