Запчасти Case IH FARMALL 115C (35.100.BI[04]) - VAR - 743596 - HYDRAULIC LIFT, CYLINDER AND PISTON (35) - HYDRAULIC SYSTEMS

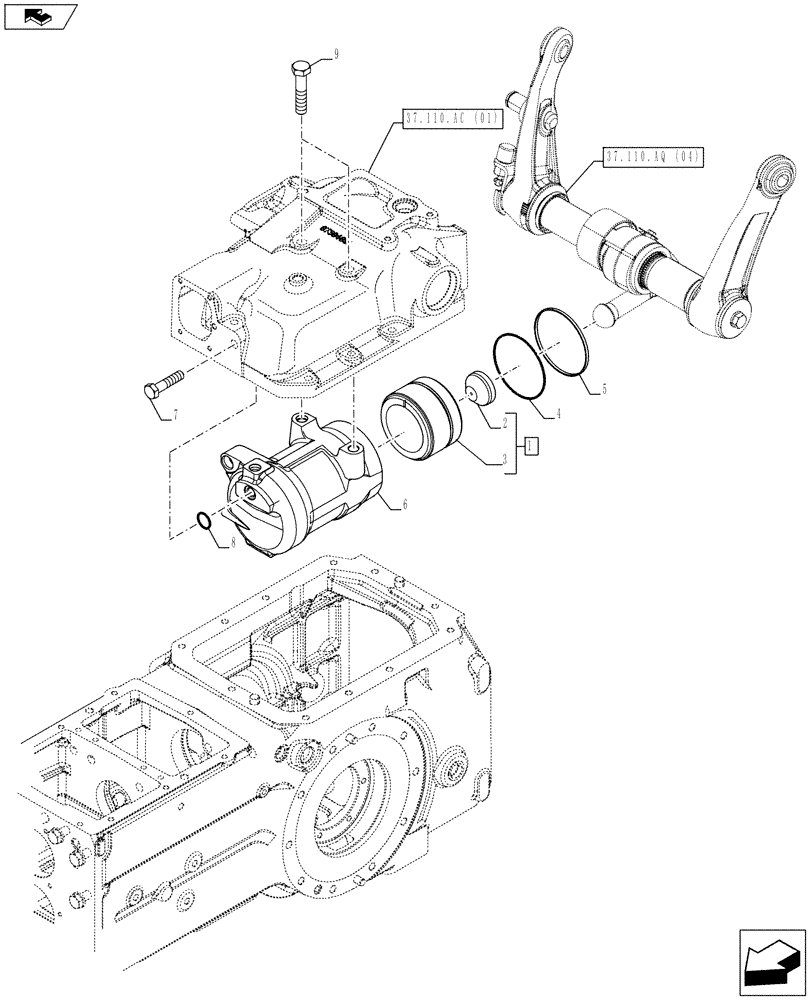

Схема запчастей Case IH FARMALL 115C - (35.100.BI[04]) - VAR - 743596 - HYDRAULIC LIFT, CYLINDER AND PISTON (35) - HYDRAULIC SYSTEMS
3
4
2
1
8
5
7
37.110.ac (01)
6
37.110.aq (04)
9
home

Артикул

Название

Примечание

Количество

1

5132004

PISTON

ASSY, Incl 2, 3

1шт.

2

573148

SEAT/SLOT

Incl in 1

1шт.

3

5132003

PISTON

Piston Housing, Incl in 1

1шт.

4

87421145

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

5

5126204

O-RING,90.7mm ID x 100mm OD x 4.2mm Thk

1шт.

6

5132002

CYLINDER,76mm Bore Dia

1шт.

7

15977534

BOLT,Hex, M14 x 1.5 x 60mm, Cl 10.9

2шт.

8

129979

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

9

15981334

BOLT,Hex, M16 x 1.5 x 75mm, Cl 10.9

1шт.

Выбрано товаров: 9
