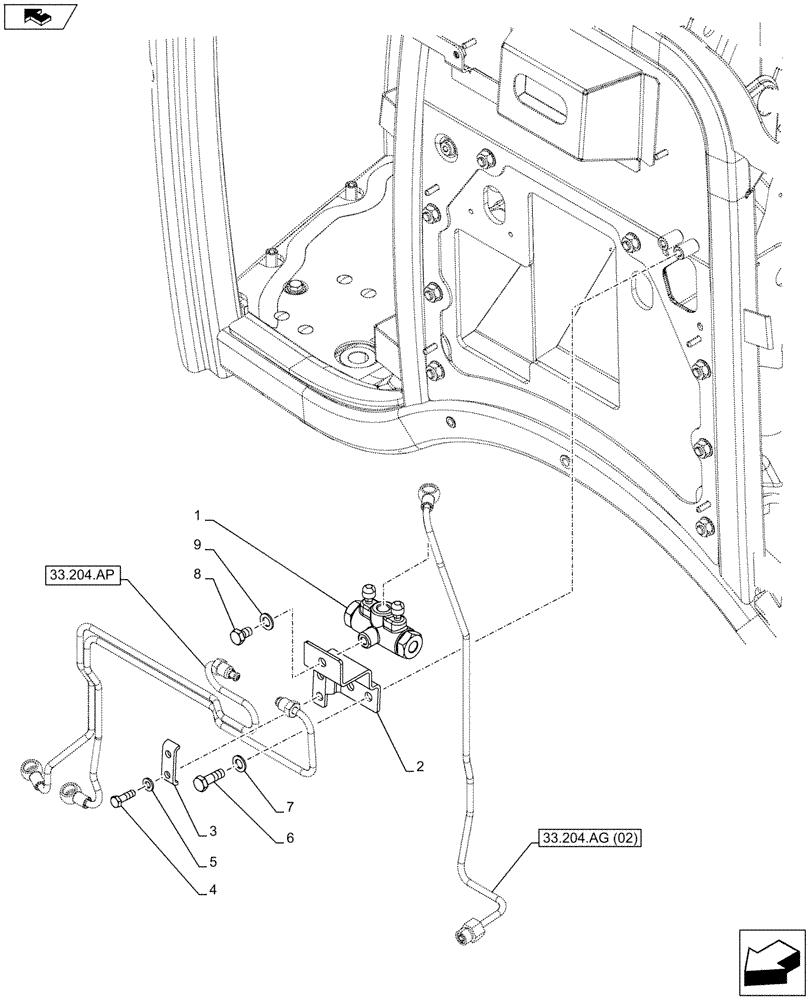

Запчасти Case IH FARMALL 115C (33.204.AJ) - VAR - 743561, 338323 - 4WD, FRONT AXLE, BRAKE VALVE (33) - BRAKES & CONTROLS

1

5143506

MASTER CYLINDER

1шт.

2

47389084

BRACKET

1шт.

3

47389623

BRACKET

1шт.

4

10902534

SCREW,Hex, M6 x 22mm, Cl 10.9, Full Thd

2шт.

5

83962575

WASHER,6.6mm ID x 12.5mm OD x 1.6mm Thk

2шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

7

13507104

WASHER,9.2mm ID x 16mm OD x 1.5mm Thk

2шт.

8

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

9

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

1шт.
