Запчасти Case IH FARMALL 115C (33.204.AD[02]) - VAR - 338323 - 4WD FRONT AXLE, BRAKES, W/HYDRAULIC DIFFERENTIAL LOCK AND BRAKE (HEAVY DUTY) (33) - BRAKES & CONTROLS

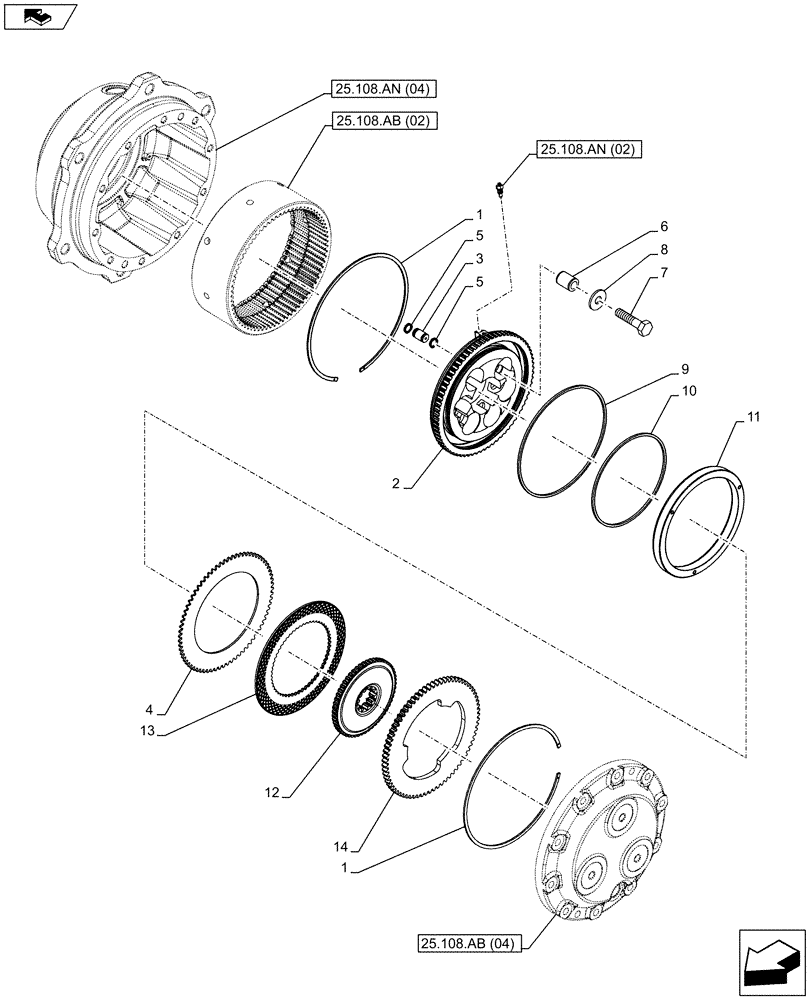

Схема запчастей Case IH FARMALL 115C - (33.204.AD[02]) - VAR - 338323 - 4WD FRONT AXLE, BRAKES, W/HYDRAULIC DIFFERENTIAL LOCK AND BRAKE (HEAVY DUTY) (33) - BRAKES & CONTROLS
1
6
home
2
3
13
11
5
25.108.an (02)
9
14
25.108.an (04)
5
4
8
12
25.108.ab (04)
10
25.108.ab (02)
7
1

Артикул

Название

Примечание

Количество

1

5173730

SNAP RING,M168 x 2.5mm Thk, Int

4шт.

2

84564597

GEAR,60T

2шт.

3

5173504

PAWL,16mm OD x 25mm L

2шт.

4

5178588

DISC,119mm ID x 181mm OD x 4.95mm Thk, 60T

2шт.

5

14456980

O-RING,10.77mm ID x 2.62mm

4шт.

6

5179292

BUSHING,10.5mm ID x 15.9mm OD x 22.8mm L

12шт.

7

16323830

BOLT,Hex, M10 x 1.25 x 45mm

12шт.

8

11190679

BELLEVILLE WASHER,M10 Bolt Size x 27mm OD x 2.5mm Thk

12шт.

9

5178746

SEAL,Square, 3.4mm Thk x 153.6mm ID, 80 Duro

2шт.

10

5178747

SEAL,Square, 3.4mm Thk x 112.6mm ID, 80 Duro

2шт.

11

5173498

BUSHING,119.23mm ID x 153.77mm OD x 15.5mm L

2шт.

12

5178606

HUB

2шт.

13

5178600

BRAKE DISC,80mm ID x 168mm OD x 3.5mm Thk

2шт.

14

5178605

DISC,170mm ID x 181mm OD x 13.5 mm Tnk

2шт.

Выбрано товаров: 14
