(33.204.AB) - VAR - 743561 - 4WD FRONT AXLE, BLEED SCREW, AIR, W/HYDRAULIC DIFFERENTIAL LOCK AND BRAKE

Запчасти Case IH FARMALL 115C (33.204.AB) - VAR - 743561 - 4WD FRONT AXLE, BLEED SCREW, AIR, W/HYDRAULIC DIFFERENTIAL LOCK AND BRAKE (33) - BRAKES & CONTROLS

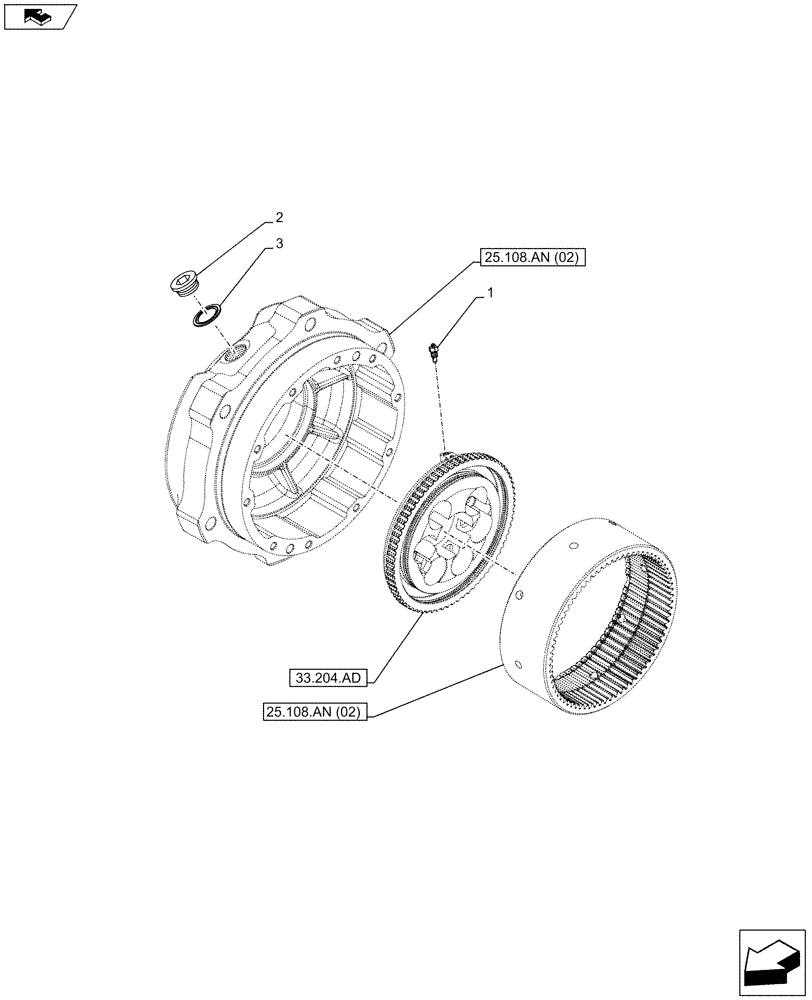

Схема запчастей Case IH FARMALL 115C - (33.204.AB) - VAR - 743561 - 4WD FRONT AXLE, BLEED SCREW, AIR, W/HYDRAULIC DIFFERENTIAL LOCK AND BRAKE (33) - BRAKES & CONTROLS
25.108.an (02)
25.108.an (02)
1
home
2
3
33.204.ad
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

2

10278340

PLUG,M28 x 1.5 x 11, Brass

2шт.

3

87380329

SEALING WASHER,28.00mm ID x 38.00mm OD x 1.50mm

2шт.

Выбрано товаров: 3
