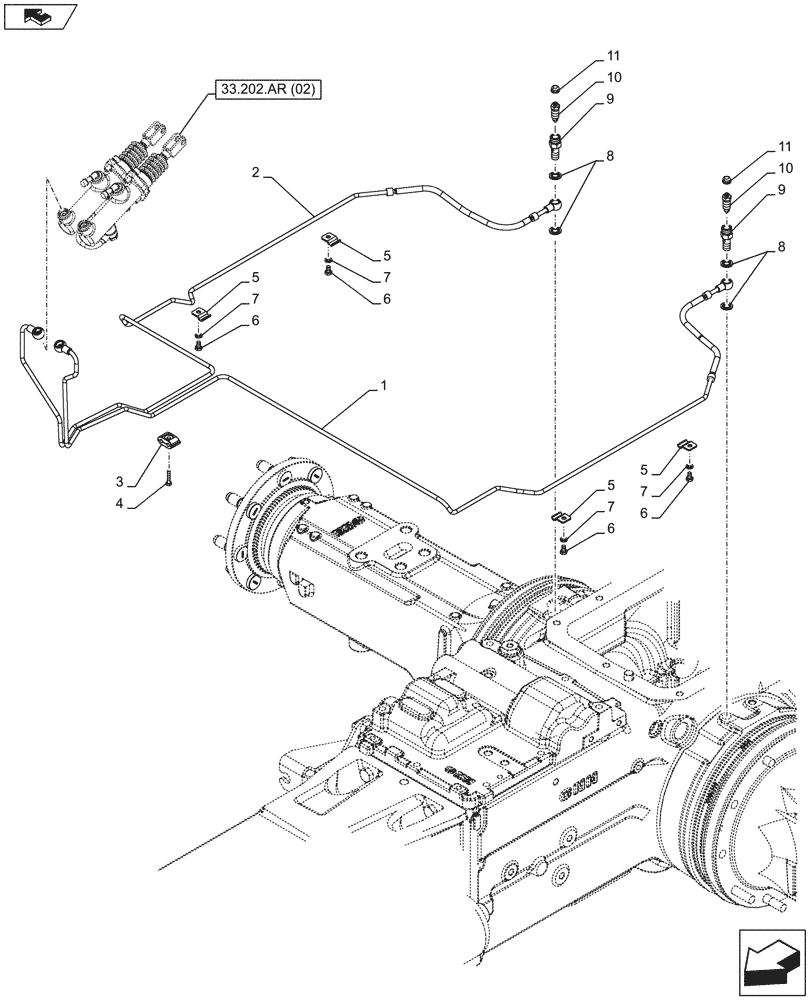

Запчасти Case IH FARMALL 115C (33.202.BE[02]) - VAR - 744581, 337323, 338323 - BRAKE, HYDR LINES (HEAVY DUTY) (33) - BRAKES & CONTROLS

1

47385858

PIPE

LH, Years: -24-OCT-13

1шт.

1

47472800

BRAKE LINE

LH, Start Year: 25-OCT-13

1шт.

2

47385854

PIPE

RH, Years: -24-OCT-13

1шт.

2

47472798

BRAKE LINE

RH, Start Year: 25-OCT-13

1шт.

3

87738904

CLAMP BRACKET

1шт.

4

10978231

BOLT,Hex, M5 x 25mm, Cl 10.9, Full Thd

1шт.

5

84474589

BRACKET

4шт.

6

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

4шт.

7

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

8

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

4шт.

9

5113983

BANJO BOLT

2шт.

10

5155682

BLEED SCREW,Bleeder, M12 x 1.25 x 33mm

2шт.

11

5171793

BOOT

2шт.
