Запчасти Case IH FARMALL 115C (33.110.AZ) - VAR - 337401 - PARKING BRAKE, HOUSING (33) - BRAKES & CONTROLS

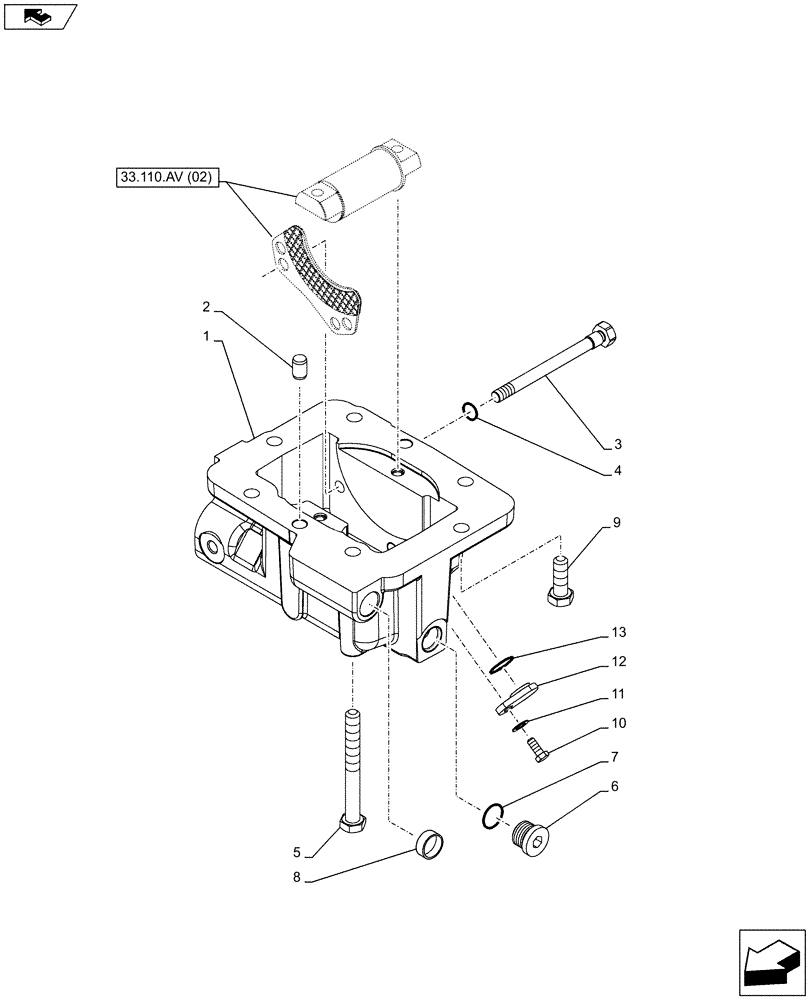

Схема запчастей Case IH FARMALL 115C - (33.110.AZ) - VAR - 337401 - PARKING BRAKE, HOUSING (33) - BRAKES & CONTROLS
7
10.
2
home
1
33.
11
a
4
10
13
6
v (02)
5
8
9
1
12
3

Артикул

Название

Примечание

Количество

1

47130422

SUPPORT

1шт.

2

10839810

DOWEL,12mm OD x 18mm L

2шт.

3

47130410

SCREW

2шт.

4

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

5

15541424

SCREW,Hex, M12 x 1.25 x 80mm, Cl 8.8

1шт.

5

514-866

BOLT,Hex, M12 x 1.25 x 120mm, Cl 8.8, Full Thd

1шт.

5

15541721

SCREW,Hex, M12 x 1.25 x 110mm, Cl 8.8

1шт.

6

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

1шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

8

14328801

PLUG,M22, Tapered

1шт.

9

15540521

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

10

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

1шт.

11

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

12

5164036

PLUG

1шт.

13

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

Выбрано товаров: 15
