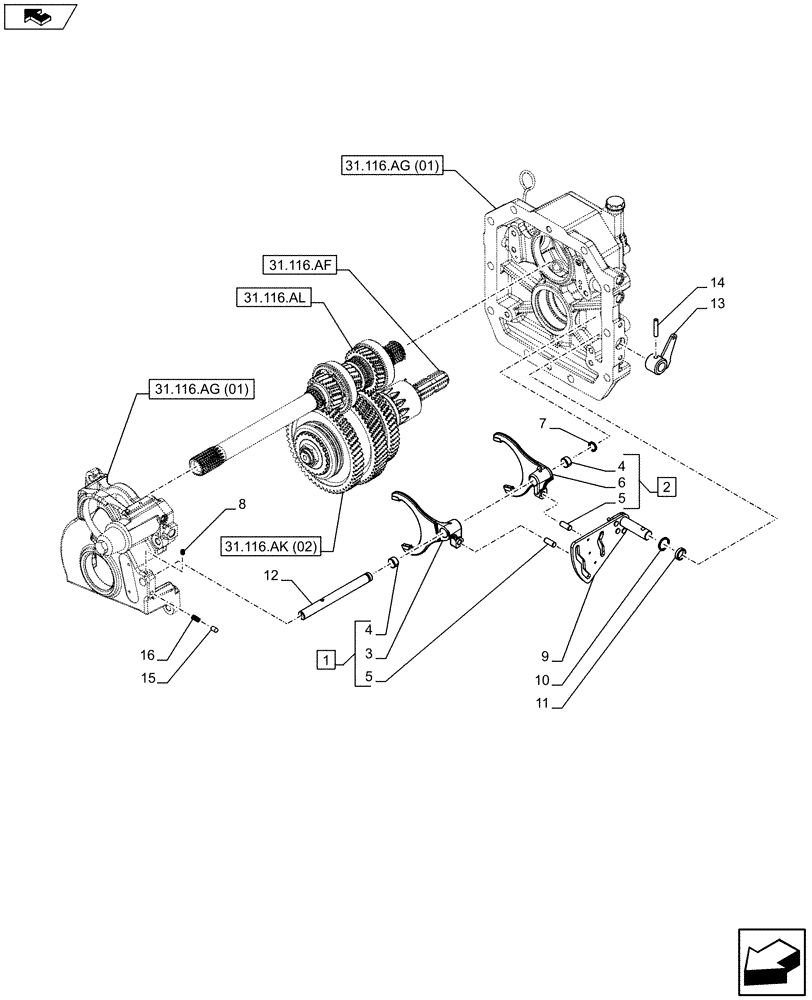

Запчасти Case IH FARMALL 115C (31.116.AK[03]) - VAR - 743768 - PTO 540/540E/1000 RPM, HYDRAULIC, SHIFTER FORK (31) - IMPLEMENT POWER TAKE OFF

1

84496489

YOKE

ASSY, Incl 3-5

1шт.

2

84497598

YOKE

ASSY, Incl 4-6

1шт.

3

NSS

NOT SOLD SEPARAT

Yoke, Incl in 1

1шт.

4

84496649

BUSHING,18mm ID x 20.035mm OD x 10.0mm L

2шт.

5

5154545

PIN,10mm OD x 25mm L

1шт.

6

NSS

NOT SOLD SEPARAT

Yoke, Incl in 2

1шт.

7

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

8

13798621

SET SCREW,Hex Skt, M8 x 12mm, Cone Pt

1шт.

9

5162792

SELECTOR

1шт.

10

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

11

594832

RING,20.1mm ID x 24.75-24.8mm OD x 6mm Thk

1шт.

12

84497073

ROD

1шт.

13

47514278

LEVER

1шт.

14

14607270

LOCK PIN,M8 x 40, Slotted

1шт.

15

5150839

PAWL,8.5mm OD x 15.4mm L

1шт.

16

5128251

SPRING,Compression, 8.5mm OD x 20mm L

1шт.
