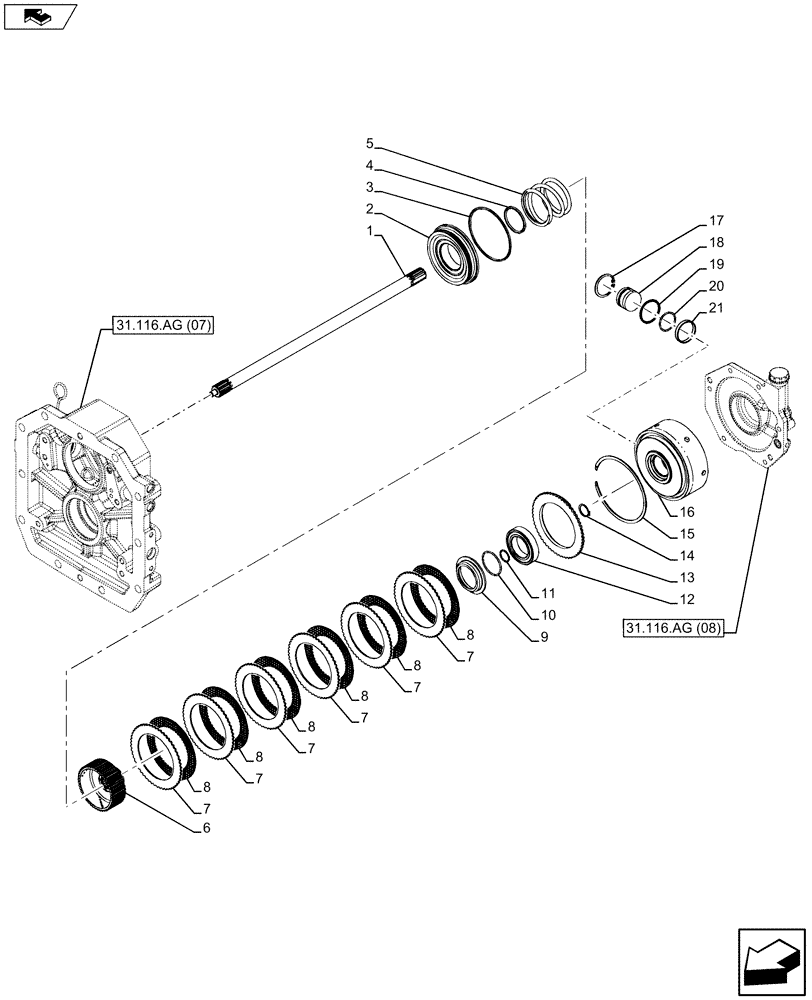

Запчасти Case IH FARMALL 115C (31.116.AH[02]) - VAR - 743768 - PTO 540/540E/1000 RPM, HYDRAULIC, CLUTCH, BRAKE (31) - IMPLEMENT POWER TAKE OFF

1

5176739

SHAFT

PTO

1шт.

2

87650341

PISTON

PTO Clutch

1шт.

3

5172413

SLIPPER,107.5mm ID x 115mm OD x 3.2mm Thk

1шт.

4

5137564

SEAL,48.55mm ID x 56mm OD x 3.2mm Thk

Inner

1шт.

5

5171681

SPRING,Compression, 79mm OD x 61mm L

1шт.

6

87650342

HUB

PTO Clutch Plate

1шт.

7

5189182

CLUTCH PLATE,98.8mm ID x 139.11mm OD x 2.3mm Thk

Clutch

6шт.

8

5165951

CLUTCH PLATE

Plate

6шт.

9

5193205

RETAINER CUP

1шт.

10

13399376

SNAP RING,M50, Int

1шт.

11

11060176

CIRCLIP,M45 x 1.75mm Thk, Int

1шт.

12

24905130

BALL BEARING,45 mm ID x 75 mm OD x 16 mm

1шт.

13

87651625

CLUTCH PLATE

1шт.

14

11067276

SNAP RING,M24, Ext

1шт.

15

5124067

CIRCLIP

1шт.

16

5189184

HOUSING

Housing Complete with Hub

1шт.

17

13398176

SNAP RING,M24, Int

1шт.

18

5165953

PISTON

PTO Clutch Assy

1шт.

19

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1шт.

20

14458480

O-RING,0.103" Thk x 1.362" ID, -126, Cl 5, 75 Duro

1шт.

21

5165946

DISC

1шт.
