(31.114.AO[01]) - VAR - 743566 - PTO 540-540E RPM, MECHANICAL, SHIFTER FORK, W/O CAB

Запчасти Case IH FARMALL 115C (31.114.AO[01]) - VAR - 743566 - PTO 540-540E RPM, MECHANICAL, SHIFTER FORK, W/O CAB (31) - IMPLEMENT POWER TAKE OFF

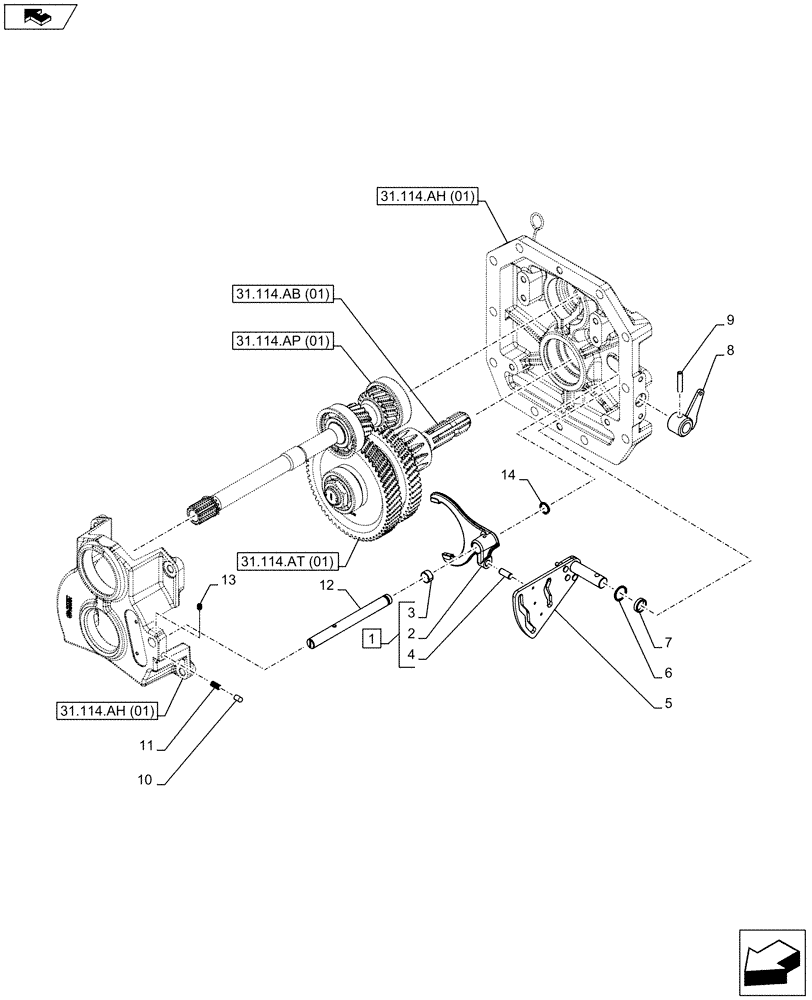

Схема запчастей Case IH FARMALL 115C - (31.114.AO[01]) - VAR - 743566 - PTO 540-540E RPM, MECHANICAL, SHIFTER FORK, W/O CAB (31) - IMPLEMENT POWER TAKE OFF
7
1
31.114.ab (01)
31.114.ap (01)
31.114.ah (01)
13
4
6
3
11
10
12
home
14
2
31.114.at (01)
31.114.ah (01)
8
9
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84497598

YOKE

ASSY, Incl 2-4

1шт.

2

NSS

NOT SOLD SEPARAT

Yoke, Incl in 1

1шт.

3

84496649

BUSHING,18mm ID x 20.035mm OD x 10.0mm L

2шт.

4

5154545

PIN,10mm OD x 25mm L

1шт.

5

5162792

SELECTOR

1шт.

6

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

7

594832

RING,20.1mm ID x 24.75-24.8mm OD x 6mm Thk

1шт.

8

84488393

LEVER

Selector Power Take Off

1шт.

9

14607270

LOCK PIN,M8 x 40, Slotted

1шт.

10

5150839

PAWL,8.5mm OD x 15.4mm L

1шт.

11

5128251

SPRING,Compression, 8.5mm OD x 20mm L

1шт.

12

84497073

ROD

1шт.

13

13798621

SET SCREW,Hex Skt, M8 x 12mm, Cone Pt

1шт.

14

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.
