Запчасти Case IH FARMALL 115C (31.110.AK[03]) - VAR - 743565 - PTO 540 RPM, HYDRAULIC, DRIVE GEAR SHAFT (31) - IMPLEMENT POWER TAKE OFF

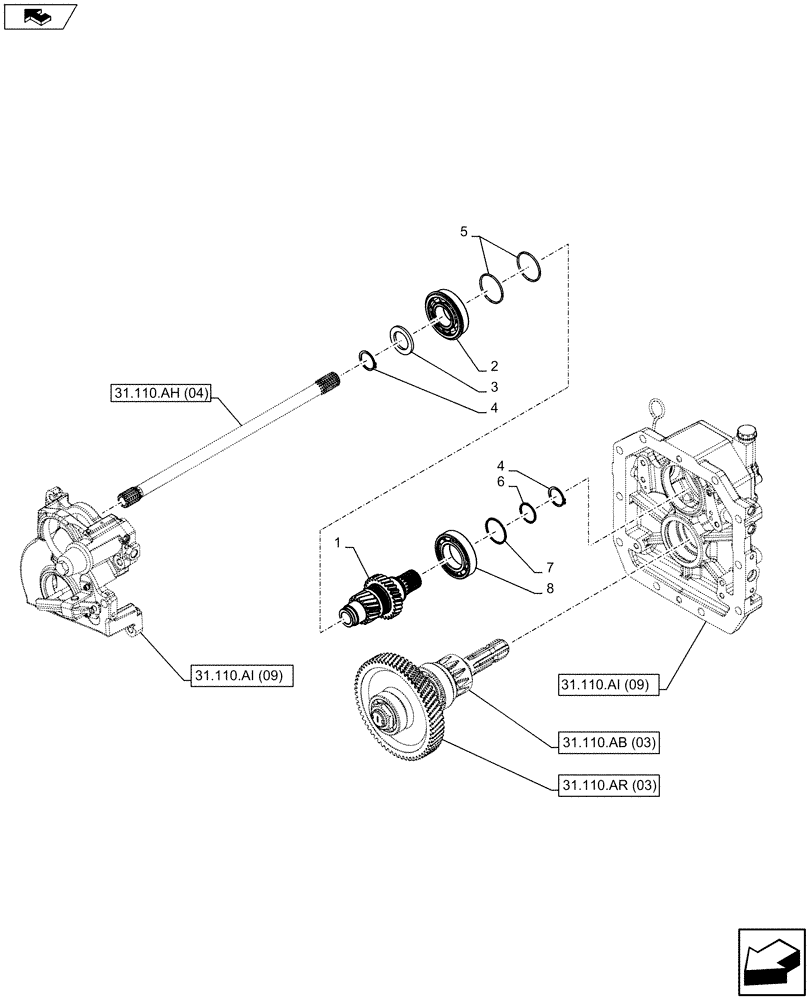

Схема запчастей Case IH FARMALL 115C - (31.110.AK[03]) - VAR - 743565 - PTO 540 RPM, HYDRAULIC, DRIVE GEAR SHAFT (31) - IMPLEMENT POWER TAKE OFF
7
4
5
31.110.ar (03)
31.110.ah (04)
6
home
2
1
31.110.ai (09)
8
31.110.ai (09)
4
31.110.ab (03)
3

Артикул

Название

Примечание

Количество

1

84492914

PTO SHAFT

Drive

1шт.

2

28995900

BALL BEARING,45mm ID x 100mm OD x 25mm W

D= 45 x 100 x 25 mm

1шт.

3

4996869

THRUST WASHER,40.1mm ID x 62mm OD x 5mm Thk

1шт.

4

11068876

SNAP RING,M40, Ext

2шт.

5

5175996

RETAINER

2шт.

6

14454680

O-RING,1.489" ID x 0.07" Width

1шт.

7

14455080

O-RING,50.52mm ID x 1.78mm

1шт.

8

20973340

BALL BEARING,55.00mm x 100.00mm x 21.00mm

1шт.

Выбрано товаров: 8
