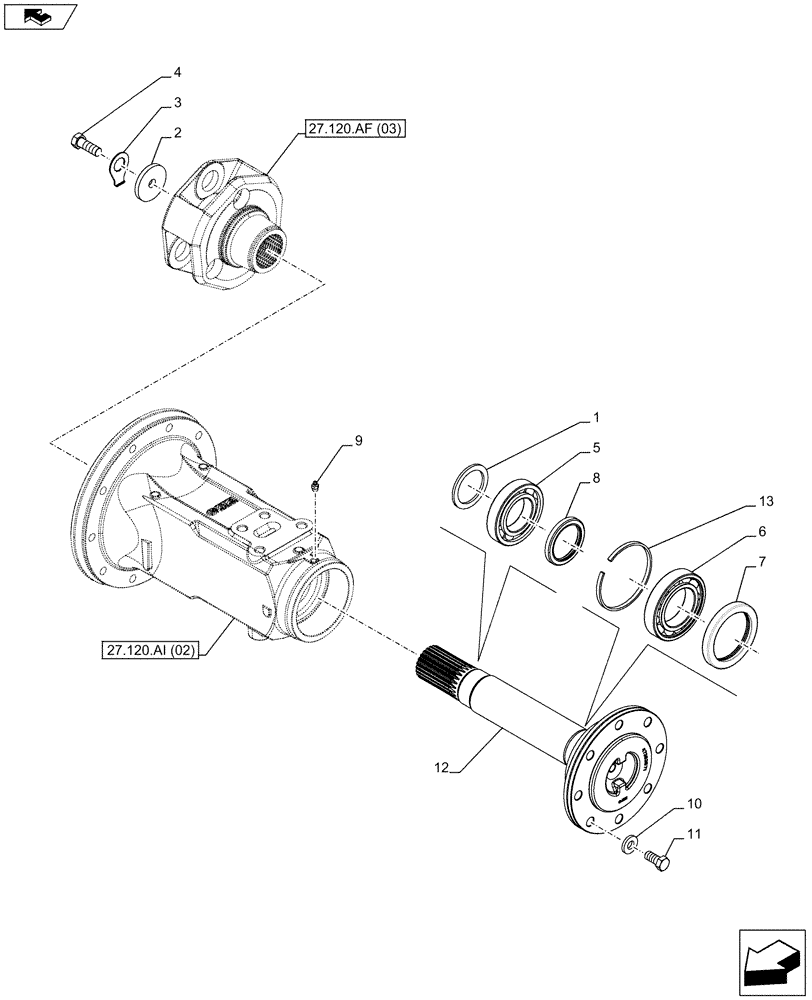

Запчасти Case IH FARMALL 115C (27.120.AF[04]) - VAR - 333411 - FINAL DRIVE, AXLE (27) - REAR AXLE SYSTEM

1

4996966

SHIM,4.5mm Thk

1шт.

1

4996967

SHIM,4.6mm Thk

1шт.

1

4996968

SHIM,4.7mm Thk

1шт.

1

4996969

SHIM,4.8mm Thk

1шт.

1

4996970

SHIM,4.9mm Thk

1шт.

1

4996971

SHIM,5.0mm Thk

1шт.

1

4996972

SHIM,5.1mm Thk

1шт.

1

4996973

SHIM,5.2mm Thk

1шт.

1

4996974

SHIM,5.3mm Thk

1шт.

1

4996975

SHIM,5.4mm Thk

1шт.

1

4996976

SHIM,5.5mm Thk

1шт.

1

4996977

SHIM,5.6mm Thk

1шт.

1

4996978

SHIM,5.7mm Thk

1шт.

1

4996979

SHIM,5.8mm Thk

1шт.

2

4997201

DISC,16.5mm ID x 70mm OD x 80mm Thk

2шт.

3

5157668

PLATE

2шт.

4

14258031

BOLT,Hex, M16 x 1.5 x 45mm, Cl 10.9, Full Thd

M16 x 1.5 x 45 mm

2шт.

5

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

2шт.

6

20645490

BALL BEARING,75 mm ID x 130 mm OD x 25 mm

2шт.

Standard transmission, Var.333411

1шт.

6

84486356

BALL BEARING,130mm OD, Gr -40/+120

2шт.

Waterproof transmission, Var.334411

1шт.

7

5123205

SEAL,100mm ID x 130mm OD x 16mm Thk

D= 100 x 130 x 16 mm

2шт.

8

5112290

OIL SEAL,68mm ID x 90mm OD x 10mm Thk

D= 68 x 90 x 10 mm

2шт.

9

13407211

LUBE NIPPLE,M10 x 1

M10 x 1 x 18 mm

2шт.

10

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

16шт.

11

11408524

BOLT,Hex, M18 x 1.5 x 40mm, Cl 8.8

M18 x 1.5 x 40 mm

16шт.

12

47383526

DRIVE AXLE

ASSY

2шт.

13

5123054

SPACER,127mm ID x 131mm OD x 6.5mm L

2шт.
