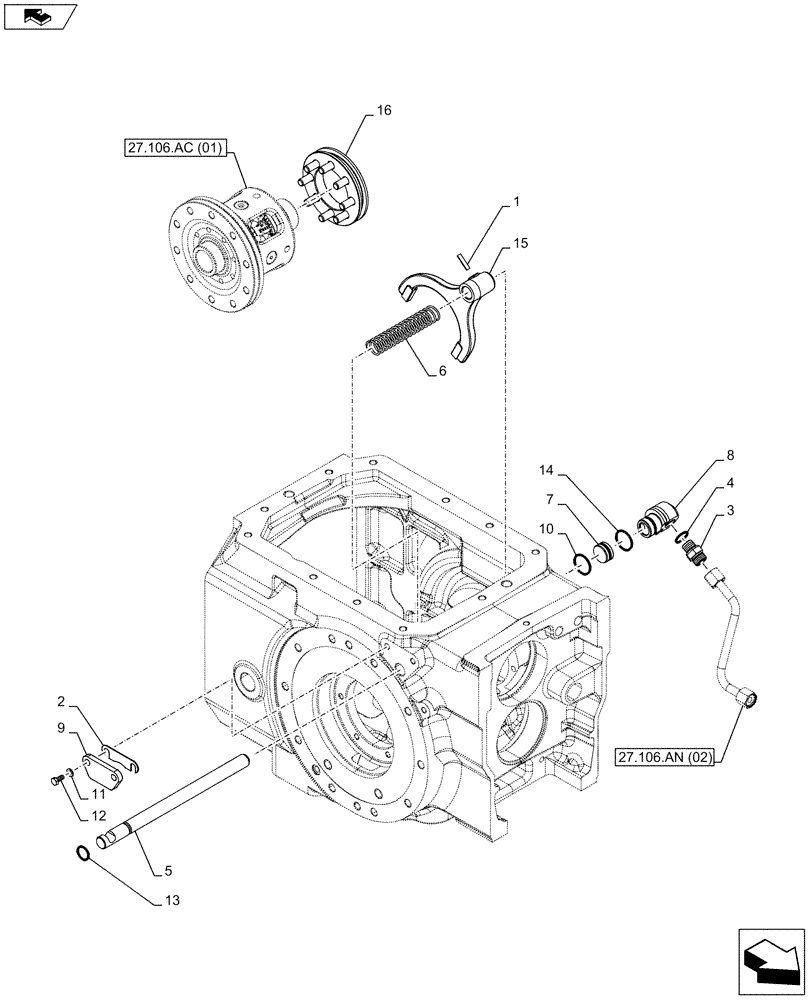

Запчасти Case IH FARMALL 115C (27.106.AO[01]) - VAR - 743564 - HYDRAULIC DIFF. LOCK CONTROL, ROD & FORKS, SLEEVE (27) - REAR AXLE SYSTEM

1

13910670

ROLL PIN,M6 x 40mm OAL, Coiled

D= 6 x 40 mm

1шт.

2

5114582

SHIM,25mm OD x 0.5mm Thk

1шт.

3

5158800

HYD CONNECTOR,M18 x 1.5 x 37.5mm L

3/4 - 16 M18 x 1 mm

1шт.

4

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

5

5160830

SHAFT

1шт.

6

5162818

SPRING,27.5mm OD x 237mm L

1шт.

7

5162819

PISTON

1шт.

8

5162820

ELBOW,M18 x 1.5 x 61mm L

1шт.

9

5156350

PLATE

1шт.

10

5160827

SEAL,22.55mm ID x 30.1mm OD x 3.2mm Thk

1шт.

11

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

12

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

13

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

14

14457880

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

15

5181268

SHIFTER FORK

Differential lock

1шт.

16

5181720

COLLAR

1шт.
