Запчасти Case IH FARMALL 115C (27.106.AN[01]) - VAR - 335775 - DIFFERENTIAL LOCK, VALVE, PIPE - ISO (27) - REAR AXLE SYSTEM

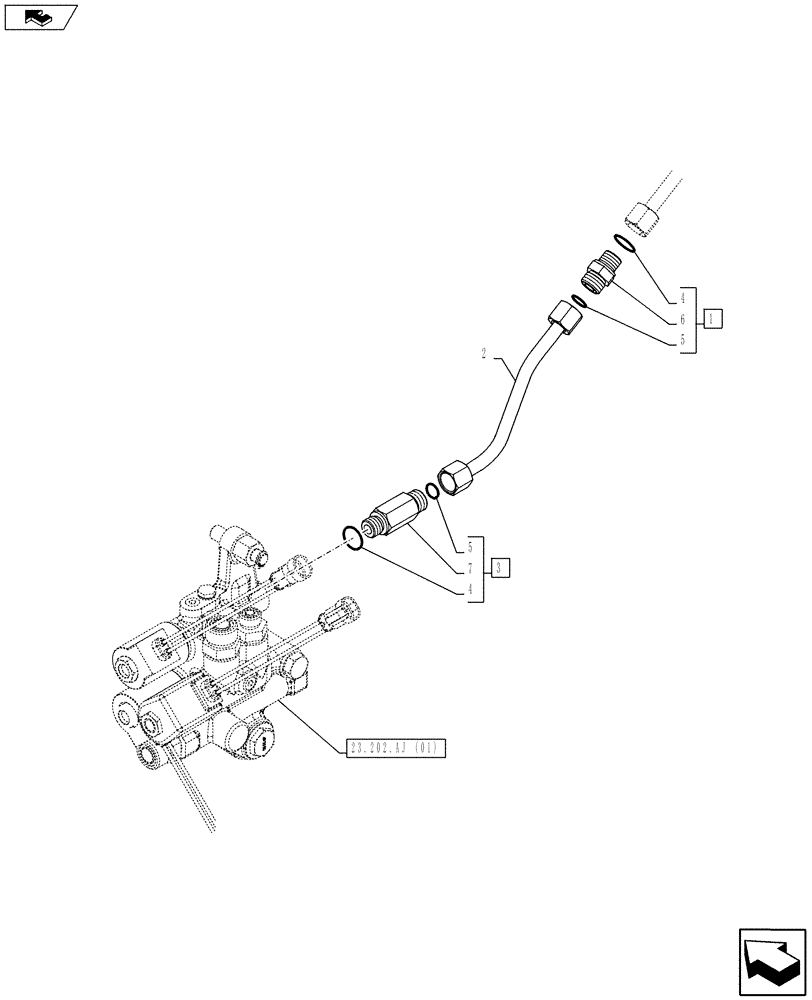

Схема запчастей Case IH FARMALL 115C - (27.106.AN[01]) - VAR - 335775 - DIFFERENTIAL LOCK, VALVE, PIPE - ISO (27) - REAR AXLE SYSTEM
2
23.202.aj (01)
home
3
5
6
4
1
4
7
5

Артикул

Название

Примечание

Количество

1

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 4 - 6

1шт.

2

84482482

TUBE

1шт.

3

84487886

HYD CONNECTOR

ASSY, Incl 4, 5, 7

1шт.

4

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Incl in 1, 3

1шт.

5

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Incl in 1, 3

1шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

Выбрано товаров: 7
