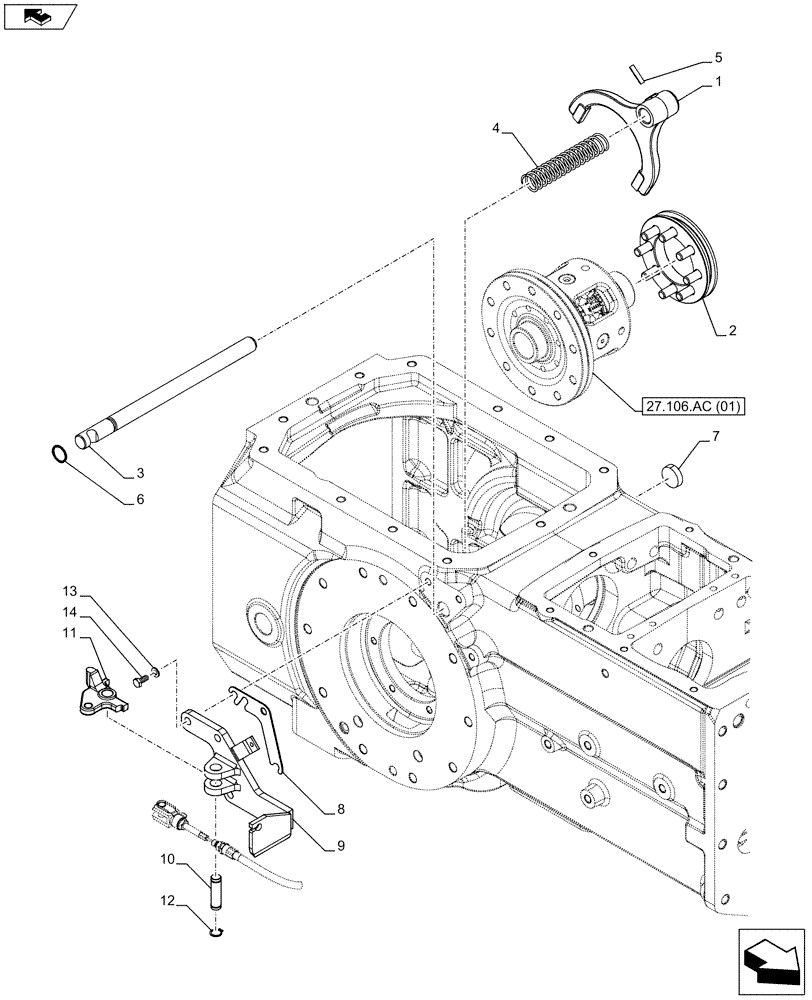

Запчасти Case IH FARMALL 115C (27.106.AM) - VAR - 390381 - MECHANICAL DIFF. LOCK CONTROL, ROD & FORKS, SLEEVE (27) - REAR AXLE SYSTEM

1

5113659

SHIFTER FORK

Differential lock

1шт.

2

5117245

DRIVE BUSHING

1шт.

3

5162895

SHAFT

1шт.

4

5114581

SPRING,27mm OD x 220mm

1шт.

5

13910670

ROLL PIN,M6 x 40mm OAL, Coiled

D= 6 x 10 mm

1шт.

6

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

7

14329101

PLUG,M30, Tapered

D= 30 x 9 mm

1шт.

8

5123691

SHIM,91mm OD x 0.5mm Thk

1шт.

9

47395776

BRACKET

1шт.

10

87368070

PIN,16mm OD x 45mm L

1шт.

11

5125123

LEVER

1шт.

12

300625

SNAP RING,M16, Ext

2шт.

13

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

3шт.

14

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

M10 x 30 mm

3шт.
