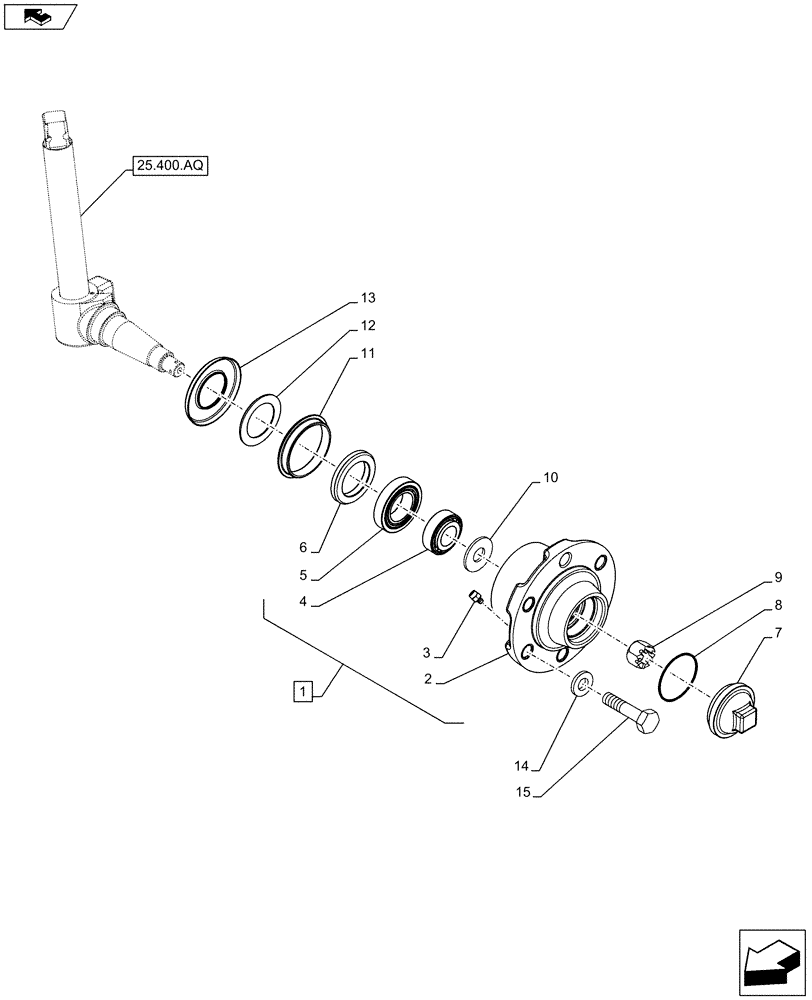

Запчасти Case IH FARMALL 115C (25.400.AH) - VAR - 330581 - 2WD FRONT AXLE, HUB (25) - FRONT AXLE SYSTEM

1

84168695

HUB

ASSY, Incl 2 - 6

2шт.

2

NSS

NOT SOLD SEPARAT

Hub, Incl in 1

1шт.

3

84351730

FITTING,M10 x 1

1шт.

4

84346529

ROLLER BEARING,28.57mm ID x 57.15mm OD x 19.84mm W

1шт.

5

5132342

TAPERED BEARING,Roller, 41.3mm ID x 73.4mm OD x 17.6mm W

1шт.

6

87304741

SLEEVE,74mm ID x 90mm OD x 13.8mm L

1шт.

7

82833551

PLUG,Cap hub front AXLE

2шт.

8

14460180

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

2шт.

9

10724720

SLOTTED NUT,M20 x 1.5

2шт.

10

87692069

WASHER,20.5 mm ID x 49 mm OD x 3.4 mm

2шт.

11

82834181

SEAL,50mm ID x 74mm OD x 10mm Thk

2шт.

12

82827172

COVER,50.1mm ID x 73.3mm OD x 4mm Thk

2шт.

13

82827173

SHIELD

2шт.

14

10520324

WASHER,18.4mm ID x 32mm OD x 4mm Thk

12шт.

15

15983824

BOLT,Hex, M18 x 1.5 x 35mm, Cl 8.8

12шт.
