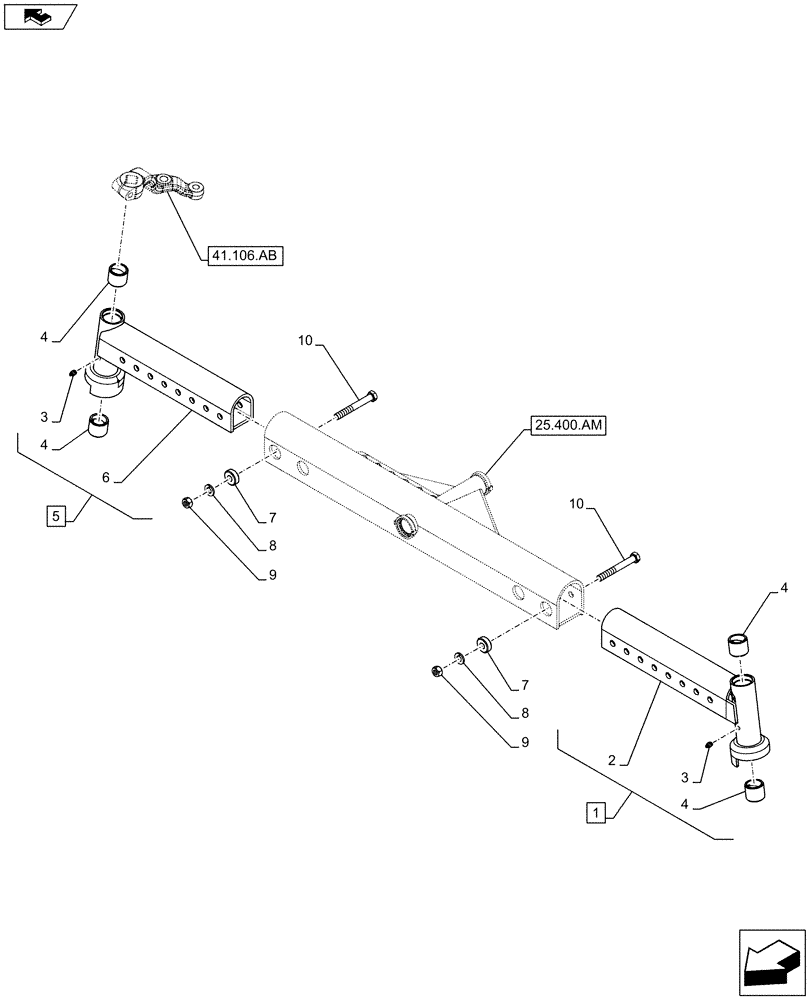

Запчасти Case IH FARMALL 115C (25.400.AD) - VAR - 330581 - 2WD FRONT AXLE, AXLE EXTENSION (25) - FRONT AXLE SYSTEM

1

84168698

FRONT AXLE

ASSY, Incl 2 - 4

1шт.

2

87699331

END

RH

1шт.

3

84351730

FITTING,M10 x 1

Axle extention, Incl in 1

2шт.

4

82833489

BUSHING,38.05mm ID x 48.04mm OD x 40mm L

4шт.

5

84168697

FRONT AXLE

ASSY, Incl 3, 4, 6

1шт.

6

87693330

LH

1шт.

7

5104245

SPACER,16.2mm ID x 40mm OD x 15mm

2шт.

8

10517279

LOCK WASHER,16.2mm ID x 30.6mm OD x 4.2mm Thk

2шт.

9

15502611

NUT,Hex, M16 x 1.5

2шт.

10

15981921

BOLT,Hex, M16 x 1.5 x 125mm, Cl 8.8

2шт.
