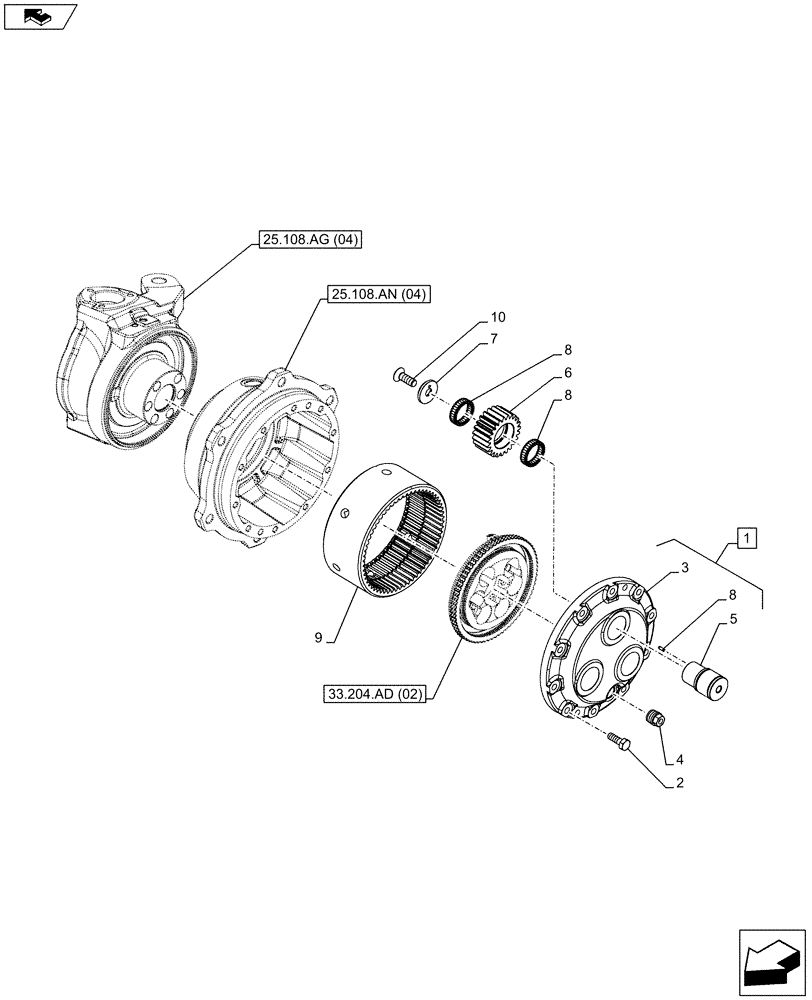

Запчасти Case IH FARMALL 115C (25.108.AB[04]) - VAR - 338323 - 4WD FRONT AXLE, PLANETARY REDUCER, W/HYDRAULIC DIFFERENTIAL LOCK AND BRAKE (HEAVY DUTY) (25) - FRONT AXLE SYSTEM

1

84339570

PLANET CARRIER

ASSY, Incl 3, 5, 8

2шт.

2

14233834

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

20шт.

3

NSS

NOT SOLD SEPARAT

Carrier, Incl in 1

3шт.

4

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

5

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

6шт.

6

84183888

PLANETARY GEAR,23T

6шт.

7

84183884

THRUST WASHER,13mm ID x 40mm OD x 7mm Thk

6шт.

8

84380206

NEEDLE ROLLER,4mm OD x 12mm L

378шт.

Qty. 3 included in PN. 84339570

1шт.

9

5178603

RING GEAR,171.5mm ID x 199.5mm OD x 84.5mm Thk, 23/60T

2шт.

10

84273746

SCREW,FLAT, M12 x 1.75 x 35mm, Cl 12.9

6шт.
