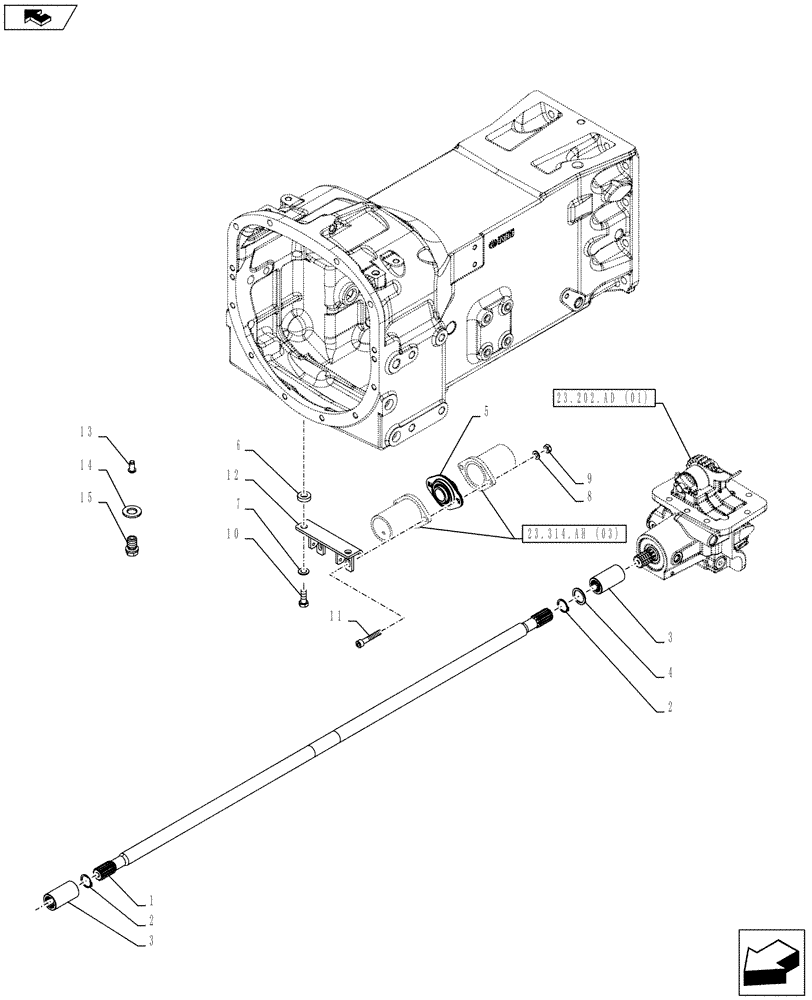

Запчасти Case IH FARMALL 115C (23.314.AH[02]) - VAR - 332448 - DRIVE SHAFT, SUPPORT (23) - FOUR WHEEL DRIVE SYSTEM

1

47382778

SHAFT

1шт.

2

11067776

SNAP RING,M29, Ext

2шт.

3

5199243

SPLINED COUPLING

2шт.

4

4997301

SHIM,29mm ID x 40mm OD x 2.2mm Thk

1шт.

4

4997302

SHIM,29mm ID x 40mm OD x 2.5mm Thk

1шт.

4

4997303

SHIM,29mm ID x 40mm OD x 2.8mm Thk

1шт.

4

4997304

SHIM,29.6mm ID x 40mm OD x 3mm Thk

1шт.

4

4997305

SHIM,29.6mm ID x 40mm OD x 3.3mm Thk

1шт.

4

4997306

SHIM,29.6mm ID x 40mm OD x 3.7mm Thk

1шт.

4

4997307

SHIM,29.6mm ID x 40mm OD x 4mm Thk

1шт.

4

4997308

SHIM,29.6mm ID x 40mm OD x 4.3mm Thk

1шт.

4

5158051

SHIM,29.6mm ID x 40mm OD x 1.5mm Thk

1шт.

4

5158052

SHIM,29.6mm ID x 40mm OD x 1.9mm Thk

1шт.

5

5167098

BEARING ASSY,30mm ID

1шт.

6

5165001

SPACER,15mm ID x 30mm OD x 8mm L

2шт.

7

11197974

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

2шт.

8

11198574

BELLEVILLE WASHER,Belleville, M10.5

2шт.

9

12164714

NUT,M10 x 1.25, Cl 8

M10 x 1.25 mm

2шт.

10

15540524

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8

M12 x 1.25 x 35 mm

2шт.

11

14308120

HEX SOC SCREW,M10 x 1.25 x 60mm, Cl 8.8

M10 x 1.25 x 60 mm

2шт.

12

5178213

SUPPORT

1шт.

13

5145574

PLUG,M7 X 12.5mm

D= 7 mm

1шт.

14

10261760

COPPER WASHER,20mm ID x 28mm OD x 1.5mm Thk

D= 20 x 28 x 1.5 mm

6шт.

15

5198705

PLUG

M20 x 2.5 mm

6шт.
