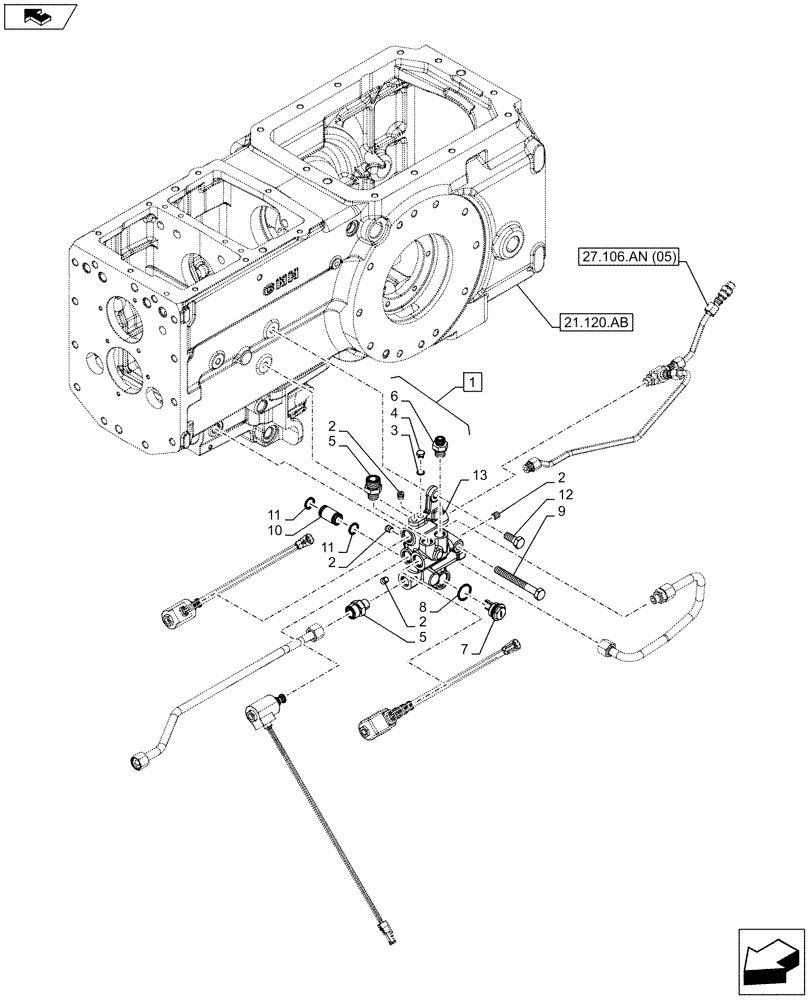

Запчасти Case IH FARMALL 115C (23.202.AJ[04]) - VAR - 743564 - DIFFERENTIAL LOCK, HYDRAULIC, VALVE (4WD - POWERSHUTTLE) (23) - FOUR WHEEL DRIVE SYSTEM

1

5174714

SUPPORT

ASSY, Incl 2 - 4

1шт.

2

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

4шт.

3

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

1шт.

4

11903114

PLUG,M10 x 1.25 x 11

1шт.

5

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

2шт.

6

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

7

5174927

PLUG

1шт.

8

14438185

O-RING,24mm ID x 3mm

1шт.

9

5166320

BOLT,Hex, M12 x 1.25 x 105mm, Cl 8.8

1шт.

10

5174926

PIPE COUPLING

1шт.

11

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

12

47124612

SCREW

1шт.

13

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.
