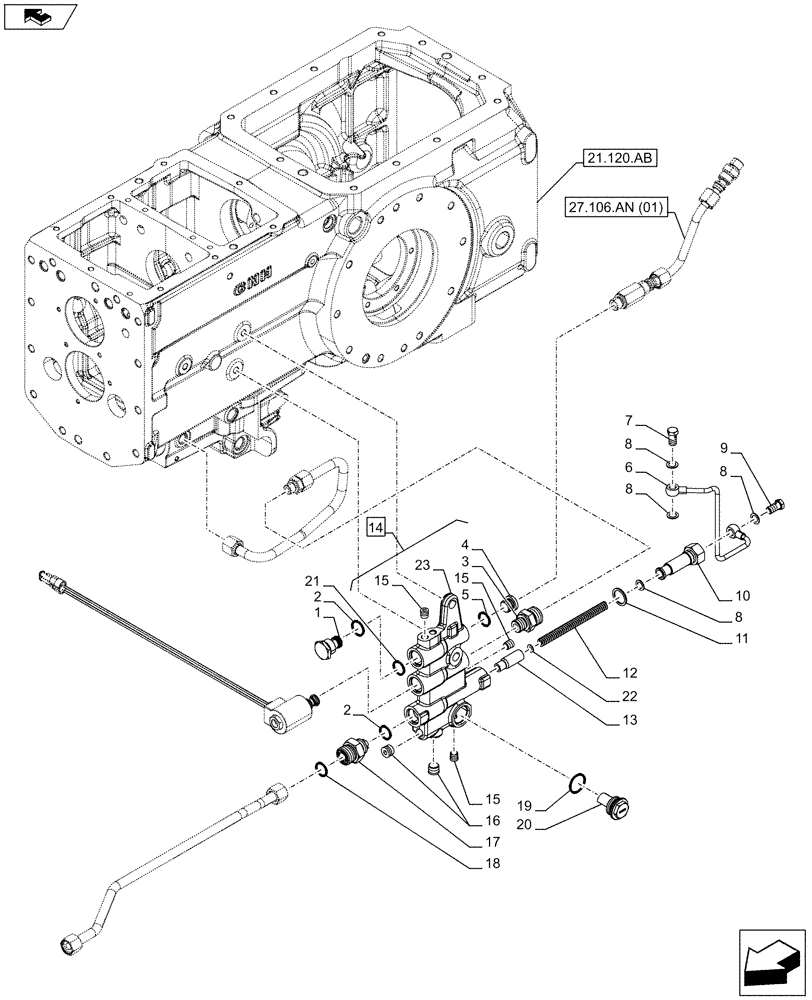

Запчасти Case IH FARMALL 115C (23.202.AJ[01]) - VAR - 390381 - DIFFERENTIAL LOCK, MECHANICAL, VALVE (4WD - SHUTTLE), W/O CAB (23) - FOUR WHEEL DRIVE SYSTEM

1

5154967

PLUG,Hex R0.2

1шт.

2

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

3

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

1шт.

4

10119411

PLUG,M18 x 1.5 x 12.00mm

1шт.

5

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

6

5169701

TUBE

1шт.

7

11903814

BANJO BOLT,M10 x 1.25 x 19mm

1шт.

8

10298360

SEALING WASHER,M10.2 x 16 x 1, Copper

4шт.

9

5169835

BANJO BOLT

1шт.

10

5196410

PLUG

1шт.

11

10257460

SEAL,M20.3 x 26 x 1.5

1шт.

12

5157119

SPRING,11.5mm x 127mm

1шт.

13

5169220

HYDRAULIC VALVE

1шт.

14

5174901

VALVE

ASSY, Incl 15, 16

1шт.

15

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

3шт.

16

10269501

PLUG,M14 x 1.5

2шт.

17

47402055

HYD CONNECTOR

1шт.

18

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

14438185

O-RING,24mm ID x 3mm

1шт.

20

5174927

PLUG

1шт.

21

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

22

13550124

WASHER,5.15mm ID x 11mm OD x 1mm Thk

1шт.

23

NSS

NOT SOLD SEPARAT

Support, Incl in 14

1шт.
