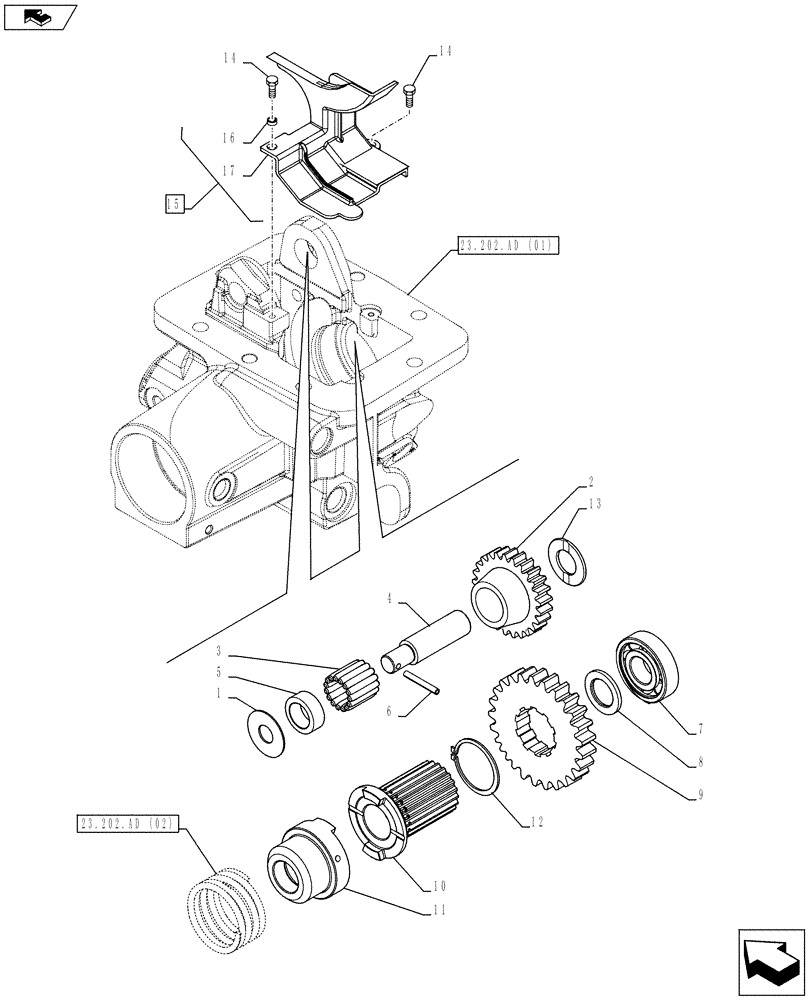

Запчасти Case IH FARMALL 115C (23.202.AI[01]) - 4WD - CASING - GEAR (23) - FOUR WHEEL DRIVE SYSTEM

1

47133292

THRUST WASHER

1шт.

2

84321801

GEAR

1шт.

3

5115937

NEEDLE BEARING,26.8mm ID x 40.8mm OD x 41mm W

1шт.

4

47133291

PIN,26.8mm OD x 106.5mm L

1шт.

5

87315062

SPACER

1шт.

6

13942970

ROLL PIN,M6 x 45, Coiled

1шт.

7

23111990

BALL BEARING,30 mm ID x 72 mm OD x 19 mm

1шт.

8

5160571

THRUST WASHER,30.25mm ID x 48mm OD x 4mm Thk

1шт.

9

87388610

GEAR

1шт.

10

47130409

SPLINED COUPLING

1шт.

11

5176903

SLEEVE,21T

1шт.

12

11061976

SNAP RING,M80, Int

1шт.

13

87612253

THRUST WASHER

1шт.

14

10977621

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

2шт.

15

84275971

SHIELD

ASSY, Incl 16, 17

1шт.

16

84275977

BUSHING

2шт.

17

NSS

NOT SOLD SEPARAT

Shield, Incl in 15

1шт.
