Запчасти Case IH FARMALL 115C (21.162.AJ[04]) - VAR - 744763 - TRANSMISSION, REVERSER (21) - TRANSMISSION

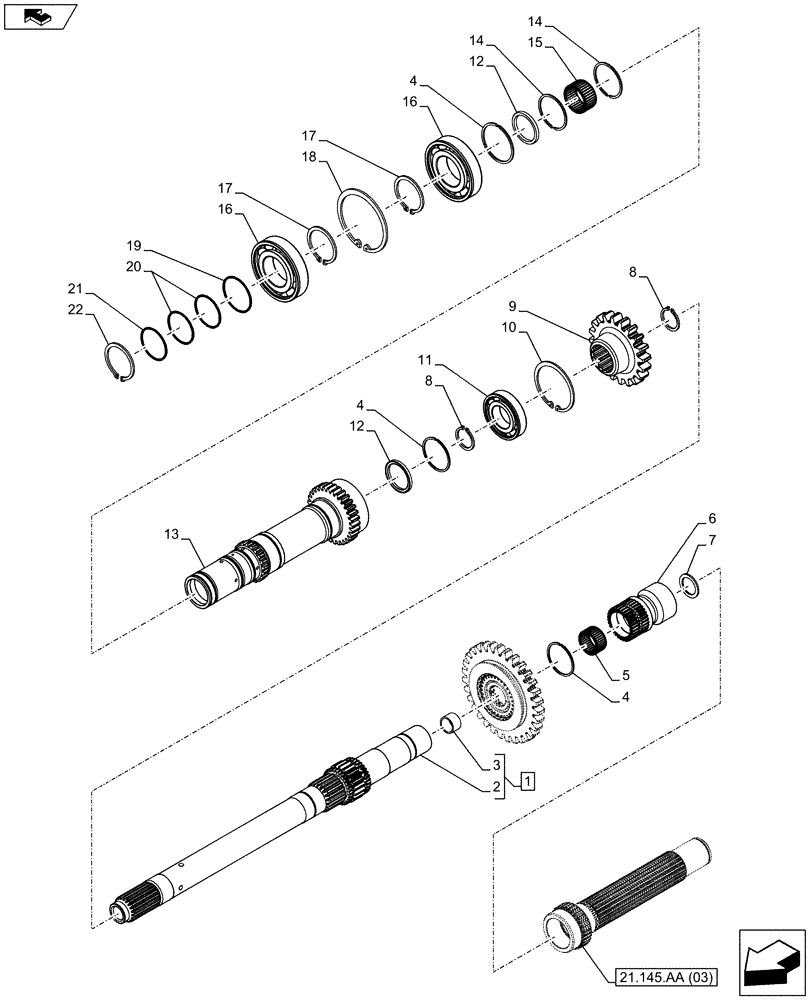

Схема запчастей Case IH FARMALL 115C - (21.162.AJ[04]) - VAR - 744763 - TRANSMISSION, REVERSER (21) - TRANSMISSION
13
21
9
17
14
8
home
1
17
4
6
20
12
10
2
15
14
8
16
4
4
5
21.145.aa (03)
7
22
19
11
12
16
3
18

Артикул

Название

Примечание

Количество

1

84161184

SHAFT

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

3

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

1шт.

4

5117076

CIRCLIP,M47, Ext

D= 47 mm

3шт.

5

5109747

NEEDLE BEARING,42mm ID x 47mm OD x 27mm W

3шт.

6

84161907

SPLINED COUPLING

1шт.

7

5160672

SHIM,51mm ID x 58.5mm OD x 2.7mm Thk

1шт.

7

5160673

SHIM,51mm ID x 58.5mm OD x 2.9mm Thk

1шт.

7

5160674

SHIM,51mm ID x 58.5mm OD x 3.1mm Thk

1шт.

7

5160675

SHIM,51mm ID x 58.5mm OD x 3.3mm Thk

1шт.

7

5162094

SHIM,51mm ID x 58.5mm OD x 3.5mm Thk

1шт.

7

5162095

SHIM,51mm ID x 58.5mm OD x 3.7mm Thk

1шт.

8

11068876

SNAP RING,M40, Ext

D= 40 mm

2шт.

9

5181849

GEAR

D= 80 mm

1шт.

10

11061976

SNAP RING,M80, Int

1шт.

11

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

D= 40 x 80 x 18 mm

1шт.

12

5168364

SEAL,40mm ID x 47mm OD x 4mm Thk

D= 40 x 47 x 4 mm

2шт.

13

5181850

SHAFT

1шт.

14

5139494

SNAP RING,45mm D x 1.5mm Thk, Ext

D= 45 mm

2шт.

15

5128943

NEEDLE BEARING,40mm ID x 45mm OD x 27mm W

1шт.

16

5181866

BALL BEARING,65mm ID x 100mm OD x 18mm W

2шт.

17

11070076

SNAP RING,M65, Ext

D= 65 mm

2шт.

18

11062976

SNAP RING,Int, M100 x 3

D= 100 mm

1шт.

19

14464680

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

20

14459680

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

D= 2.62 x 53.67 mm

2шт.

21

14455180

O-RING,2.114" ID x 0.07" Width

D= 0.07 x 2.114 mm

1шт.

22

11069776

SNAP RING,M58, Ext

D= 58 mm

1шт.

Выбрано товаров: 27
