Запчасти Case IH FARMALL 115C (21.162.AJ[03]) - VAR - 744762 - TRANSMISSION, REVERSER (21) - TRANSMISSION

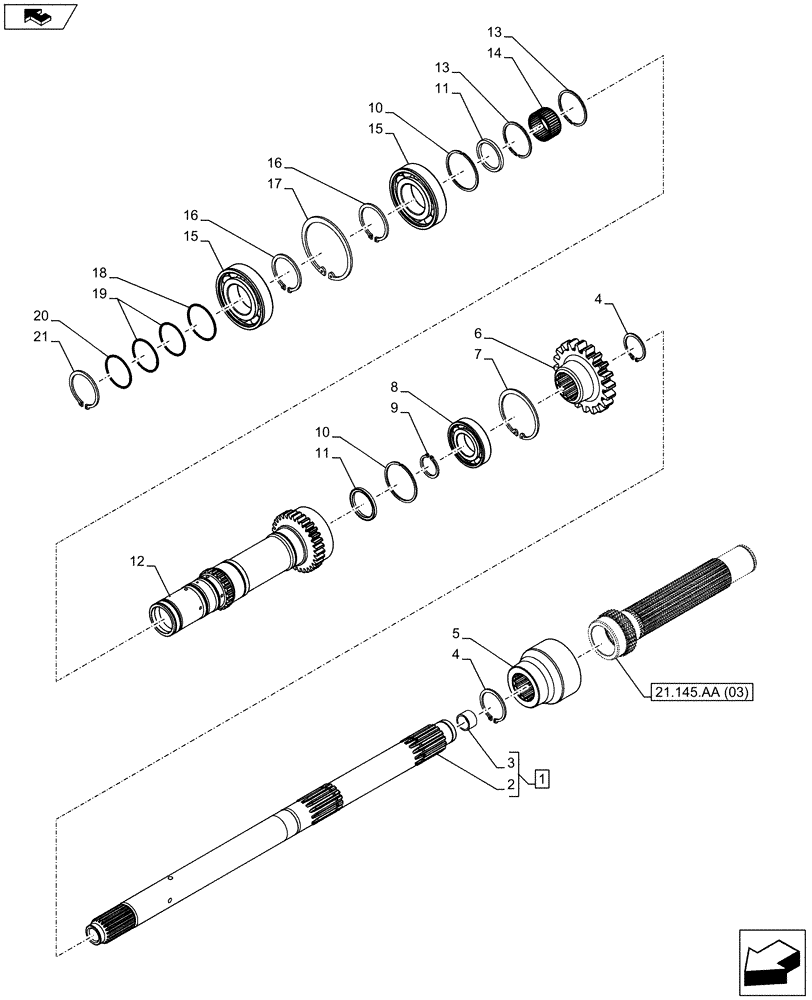

Схема запчастей Case IH FARMALL 115C - (21.162.AJ[03]) - VAR - 744762 - TRANSMISSION, REVERSER (21) - TRANSMISSION
17
13
20
19
13
10
6
21
10
15
18
11
1
21.145.aa (03)
7
3
8
2
15
home
16
14
4
5
11
9
16
4
12

Артикул

Название

Примечание

Количество

1

5181836

SHAFT

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

3

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

1шт.

4

5135061

CIRCLIP,M45, Ext

D= 45 mm

2шт.

5

87343440

SLEEVE

1шт.

6

5181849

GEAR

1шт.

7

11061976

SNAP RING,M80, Int

D= 80 mm

1шт.

8

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

D= 40 x 80 x 18 mm

1шт.

9

11068876

SNAP RING,M40, Ext

D= 40 mm

1шт.

10

5117076

CIRCLIP,M47, Ext

D= 47 mm

2шт.

11

5168364

SEAL,40mm ID x 47mm OD x 4mm Thk

D= 40 x 47 x 4 mm

2шт.

12

5181850

SHAFT

Reverse, Driving

1шт.

13

5139494

SNAP RING,45mm D x 1.5mm Thk, Ext

D= 45 mm

2шт.

14

5128943

NEEDLE BEARING,40mm ID x 45mm OD x 27mm W

1шт.

15

5181866

BALL BEARING,65mm ID x 100mm OD x 18mm W

2шт.

16

11070076

SNAP RING,M65, Ext

D= 65 mm

2шт.

17

11062976

SNAP RING,Int, M100 x 3

D= 100 mm

1шт.

18

14464680

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

19

14459680

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

D= 2.62 x 53.67 mm

2шт.

20

14455180

O-RING,2.114" ID x 0.07" Width

D= 0.07 x 2.114 mm

1шт.

21

11069776

SNAP RING,M58, Ext

D= 58 mm

1шт.

Выбрано товаров: 21
