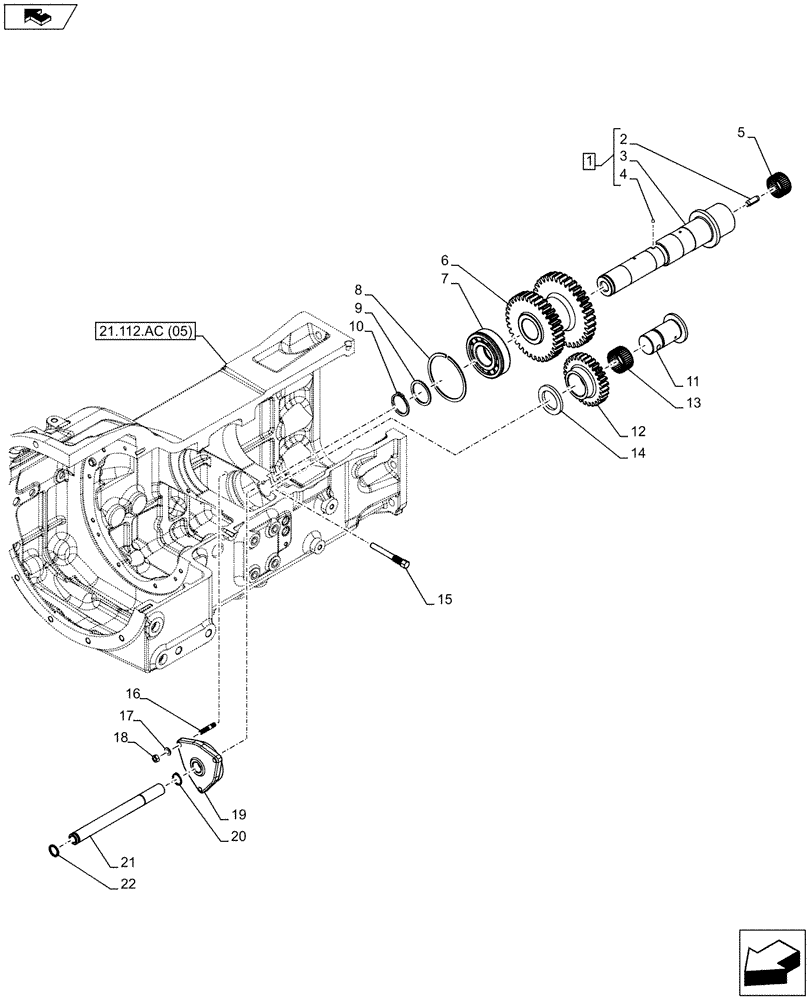

Запчасти Case IH FARMALL 115C (21.162.AF[04]) - VAR - 744763 - REVERSER, GEARS & SHAFT (21) - TRANSMISSION

1

84162069

DRIVEN SHAFT

ASSY, Incl 2 - 4

1шт.

2

14606870

LOCK PIN,M8 x 28, Slotted

M8 x 28 mm

1шт.

3

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

4

83416928

BALL,1/4 OD

1шт.

5

5128943

NEEDLE BEARING,40mm ID x 45mm OD x 27mm W

1шт.

6

87343438

GEAR

1шт.

7

28995880

BALL BEARING,35mm ID x 80mm OD x 21mm W

D= 35 x 80 x 21 mm

1шт.

8

5127690

SNAP RING

D= 82 mm

1шт.

9

5154308

THRUST WASHER,35.1mm ID x 43mm OD x 2mm Thk

1шт.

10

5109282

CIRCLIP,M35, Ext x 2.50 Thk

1шт.

11

5137525

PIN

1шт.

12

5137524

IDLER GEAR

1шт.

13

5117559

NEEDLE BEARING CAGE,32mm ID x 38mm OD x 26mm W

D= 32 x 38 x 26 mm

1шт.

14

5117560

THRUST WASHER,32.01mm ID x 48mm OD x 4.5mm Thk

D= 32 x 48 x 4 mm

1шт.

15

84424141

THREADED ROD

1шт.

16

13517210

STUD

M8 x 12 x 30 mm

3шт.

17

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

D= 8.4 x 16 x 1.4 x 1.85 mm

3шт.

18

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

19

87343448

COVER

1шт.

20

11066376

SNAP RING,M15, Ext

D= 15 mm

1шт.

21

87343444

RIGID TUBE,10 mm ID x 15.60 mm OD x 168 mm L

Lube

1шт.

22

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

D= 1.78 x 12.42 mm

1шт.
