Запчасти Case IH FARMALL 115C (21.162.AF[02]) - VAR - 744761 - REVERSER, GEARS & SHAFT (21) - TRANSMISSION

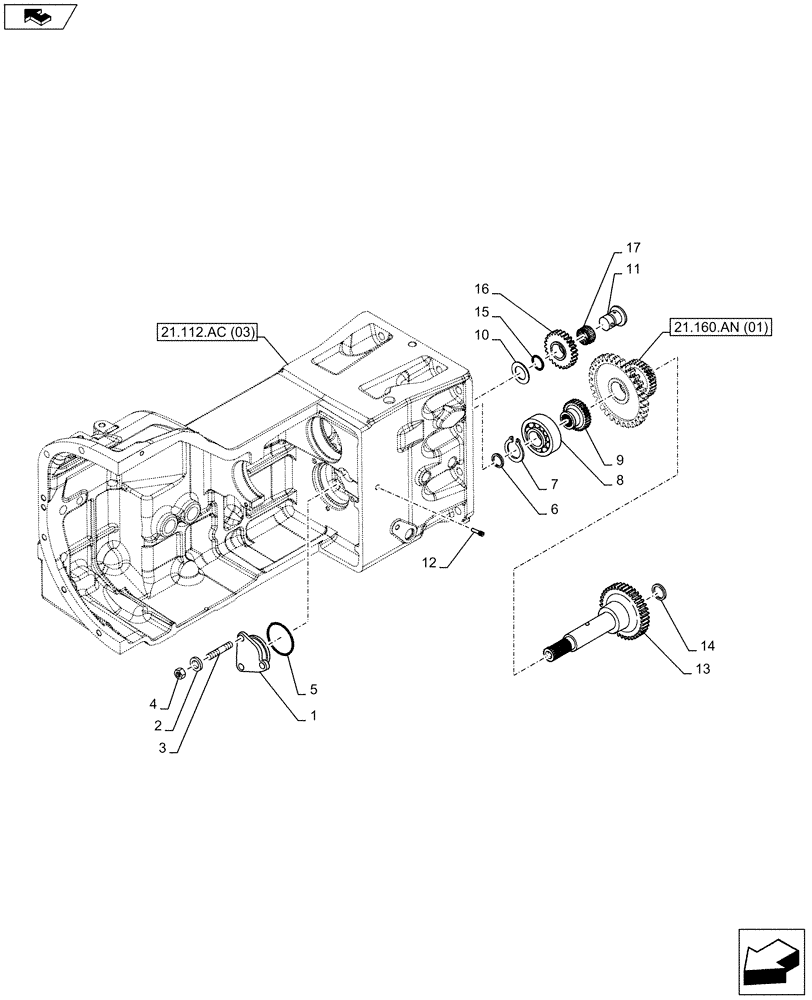

Схема запчастей Case IH FARMALL 115C - (21.162.AF[02]) - VAR - 744761 - REVERSER, GEARS & SHAFT (21) - TRANSMISSION
4
16
17
12
21.112.ac (03)
11
6
13
8
9
3
21.160.an (01)
10
home
5
2
7
15
14
1

Артикул

Название

Примечание

Количество

1

5161822

COVER

Front Gear Reverse

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

D= 8.4 x 16 x 1.4 x 1.85 mm

3шт.

3

13517210

STUD

M8 x 12 mm

3шт.

4

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

5

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

6

11067876

SNAP RING,M30, Ext

1шт.

7

11068876

SNAP RING,M40, Ext

1шт.

8

28996320

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

9

5175972

GEAR

Front Gear Reverse

1шт.

10

87736051

WASHER,32.1mm ID x 52mm OD x 0.8mm Thk

1шт.

11

87736049

PIN,32mm OD x 61mm L

1шт.

12

5161823

ROLL PIN

1шт.

13

5175970

SHAFT

Rear

1шт.

14

5116573

CIRCLIP,34.1mm ID x 36.4mm OD

1шт.

15

14457980

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

16

5175975

GEAR

Intermediate

1шт.

17

5117559

NEEDLE BEARING CAGE,32mm ID x 38mm OD x 26mm W

1шт.

Выбрано товаров: 17
