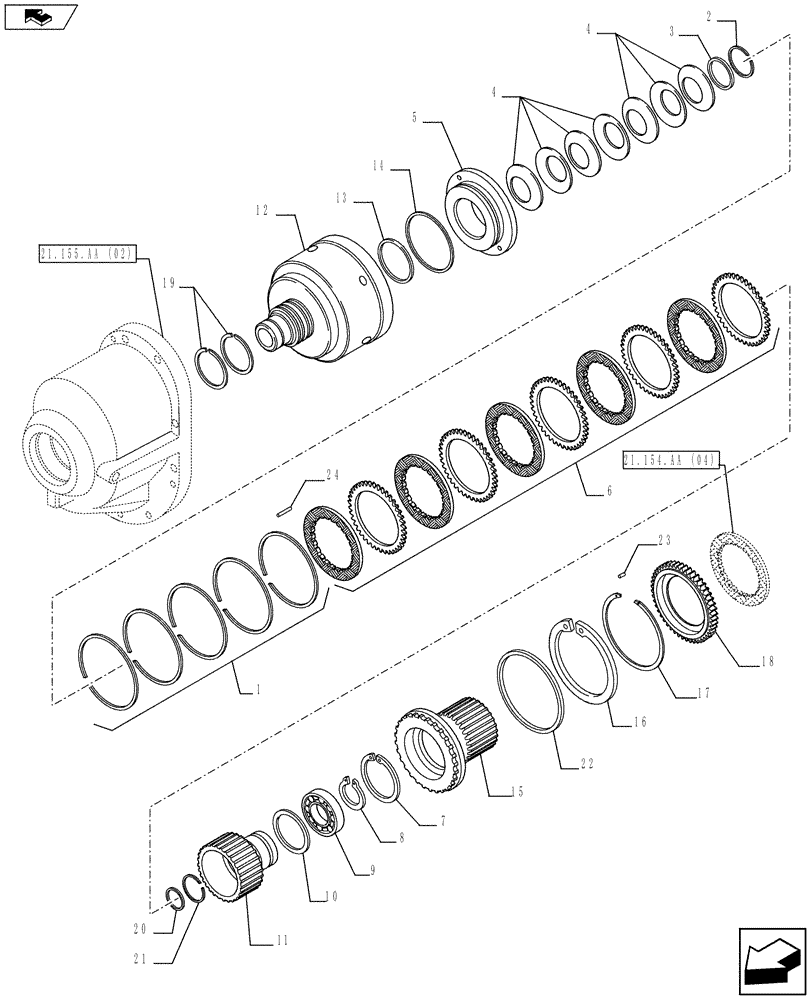

Запчасти Case IH FARMALL 115C (21.154.AA[03]) - VAR - 744762, 744763 - CLUTCH HOUSING (21) - TRANSMISSION

1

5166536

SPRING,173mm OD x 1.27mm Thk

5шт.

2

5162253

CIRCLIP,2mm Thk

1шт.

3

5162263

RETAINER CUP,68mm ID x 78mm OD x 3mm Thk

1шт.

4

87547943

SPRING,Belleville, 68mm ID x 1.9mm Thk

7шт.

5

5171202

PISTON

1шт.

6

87534848

KIT

1шт.

7

11062476

SNAP RING,M90, Int

1шт.

8

11069576

SNAP RING,M55, Ext

1шт.

9

28042510

BALL BEARING,55mm x 90mm x 18mm

1шт.

10

5181842

THRUST WASHER,55mm ID x 83mm OD x 1mm Thk

1шт.

11

5181838

HUB

1шт.

12

5181843

HOUSING

1шт.

13

5162398

SEALING RING,82.55mm ID x 90mm OD x 3.2mm Thk

1шт.

14

5143775

SEAL,128.55mm ID x 136.06mm OD x 3.2mm Thk

1шт.

15

5186183

HUB

1шт.

16

11078676

SNAP RING,M175, Int

1шт.

17

5122844

SNAP RING,168mm, 2mm Thk, Int

1шт.

18

5186182

CLUTCH PLATE

1шт.

19

5131232

OIL SCRAPER RING,Split, 83.02mm ID x 90mm OD x 2.22mm Thk

2шт.

20

5173674

GASKET,35mm ID x 42mm OD x 4mm Thk

1шт.

21

5124473

SNAP RING,1.5mm Thk, Int

1шт.

22

5190247

SEAL,Locking, 111.45mm ID x 119.25mm OD x 3.8mm Thk

1шт.

23

13897270

ROLL PIN,M2.5 x 10, Coiled

1шт.

24

87534850

PIN

1шт.
