Запчасти Case IH FARMALL 115C (21.148.AC[02]) - CENTRAL REDUCTION GEAR, BEARING, HEAVY DUTY (21) - TRANSMISSION

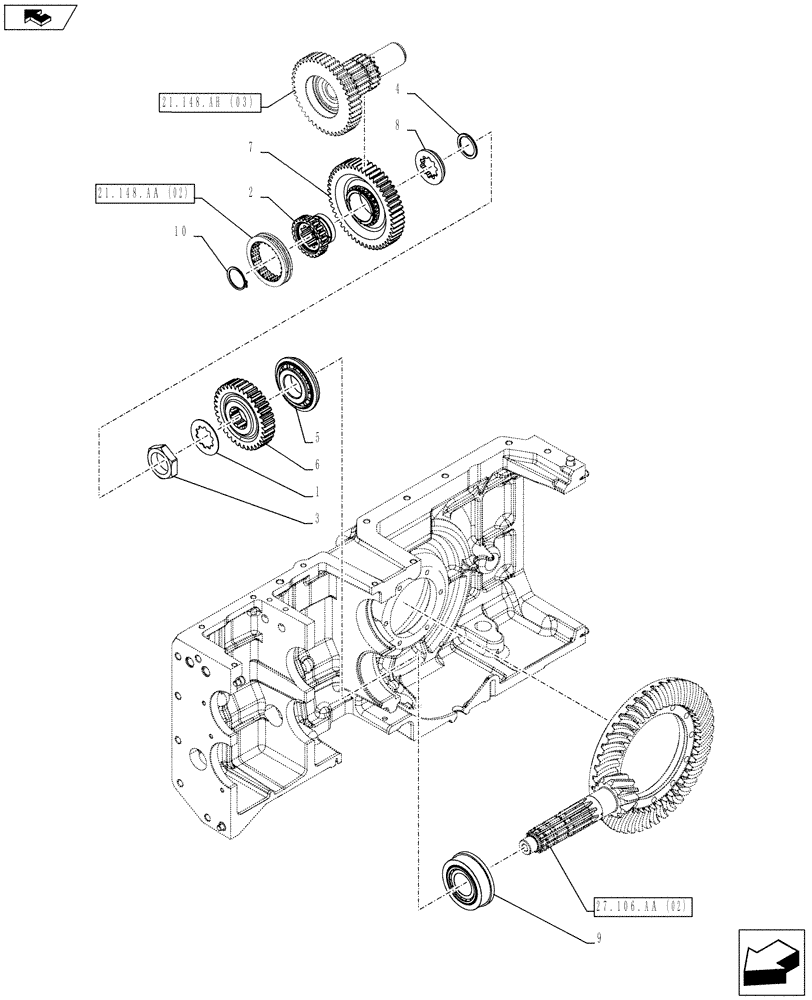

Схема запчастей Case IH FARMALL 115C - (21.148.AC[02]) - CENTRAL REDUCTION GEAR, BEARING, HEAVY DUTY (21) - TRANSMISSION
10
(02)
21.148.ah (03)
6
2
7
21.148.a
5
(02)
1
9
8
4
a
3
home
27.106.a
a

Артикул

Название

Примечание

Количество

1

5119261

LOCK WASHER,38mm ID x 70mm OD x 1.5mm Thk

1шт.

2

5160749

SPLINED COUPLING,10T Internal / 23T External

1шт.

3

5117744

NUT

1шт.

4

5127762

HALF-RING

1шт.

5

5130990

TAPERED BEARING,45mm ID x 100mm OD x 20mm W

D= 45 x 100 x 20.75

1шт.

6

87388608

DRIVEN GEAR

1шт.

7

5160747

GEAR

1шт.

8

5160748

SPACER

1шт.

9

47124626

TAPERED BEARING,45mm ID x 106mm OD x 38.25mm W

D= 45 x 100 x 30.25

1шт.

10

11068976

SNAP RING,M42, Ext

D= 42 mm

1шт.

Выбрано товаров: 10
