(21.145.AH[01]) - TRANSMISSION, COVERS

Запчасти Case IH FARMALL 115C (21.145.AH[01]) - TRANSMISSION, COVERS (21) - TRANSMISSION

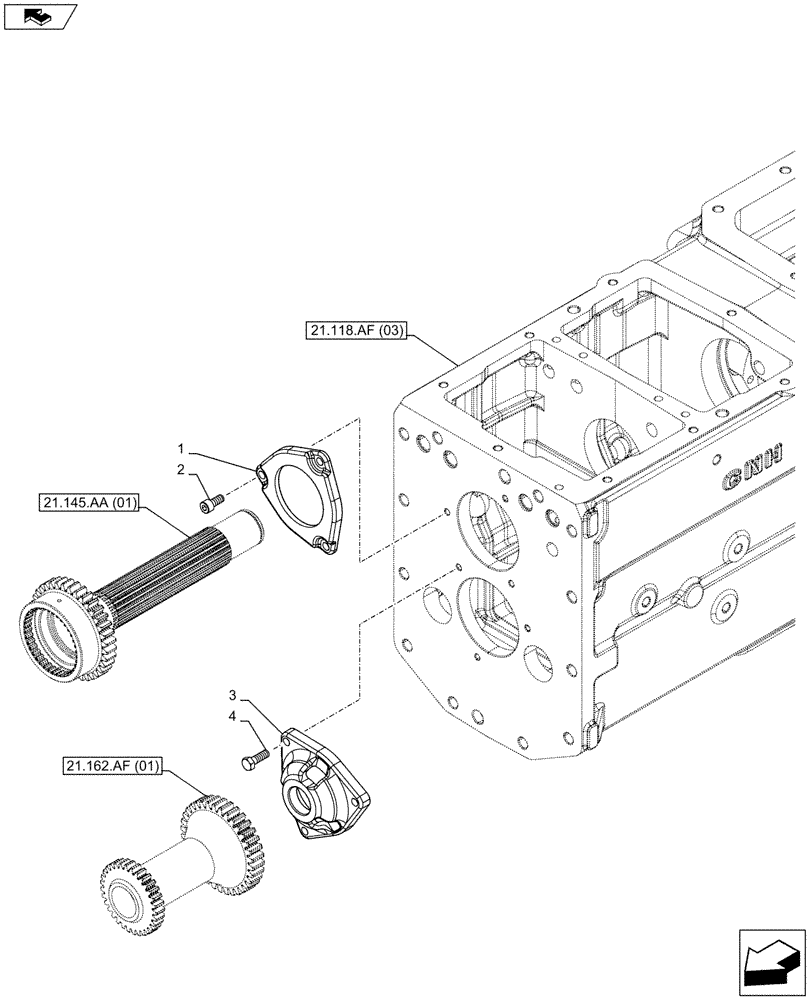

Схема запчастей Case IH FARMALL 115C - (21.145.AH[01]) - TRANSMISSION, COVERS (21) - TRANSMISSION
21.145.aa (01)
4
3
2
home
21.118.af (03)
21.162.af (01)
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87671277

BEARING COVER,72 mm ID x 11 mm

1шт.

2

14302821

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

M8 x 18 mm

3шт.

3

84244172

BEARING COVER

1шт.

4

14238124

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

M8 x 25 mm

3шт.

Выбрано товаров: 4
