Запчасти Case IH FARMALL 115C (21.140.AE[05]) - VAR - 743542 - TRANSMISSION, GEARS (21) - TRANSMISSION

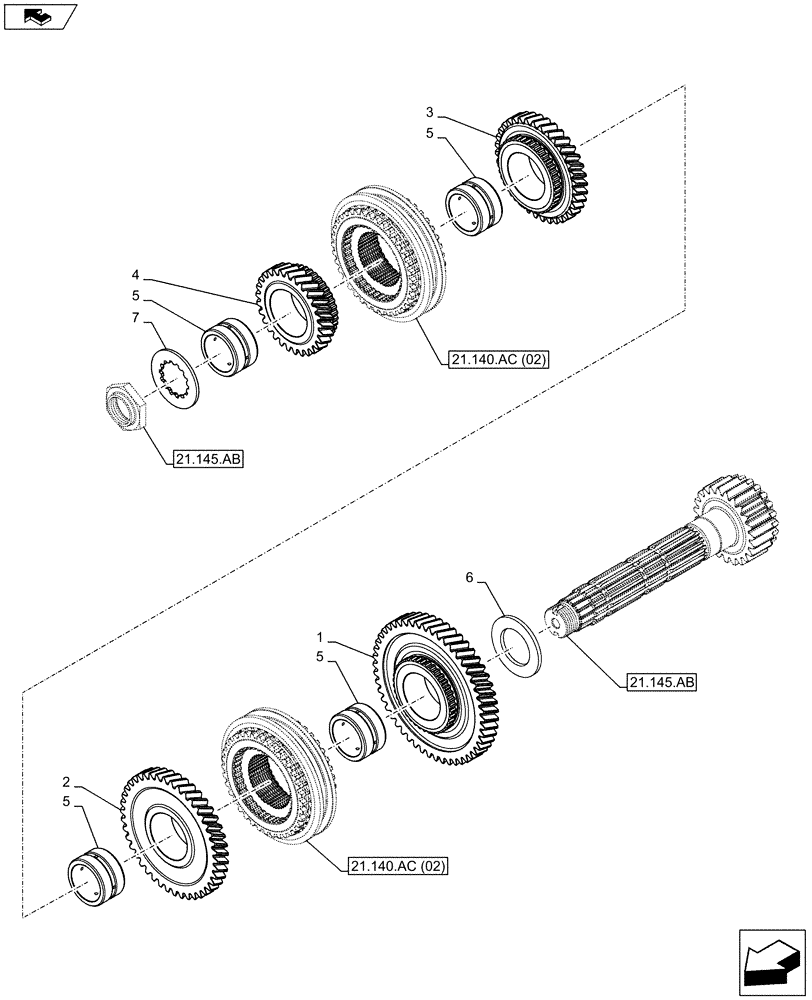

Схема запчастей Case IH FARMALL 115C - (21.140.AE[05]) - VAR - 743542 - TRANSMISSION, GEARS (21) - TRANSMISSION
21.140.ac (02)
4
3
5
5
2
home
1
21.140.ac (02)
7
21.145.ab
21.145.ab
5
5
6

Артикул

Название

Примечание

Количество

1

87330658

GEAR

1st Speed

1шт.

2

87330659

GEAR

2nd Speed

1шт.

3

87330660

GEAR

3rd Speed

1шт.

4

87330661

GEAR

4th Speed

1шт.

5

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

4шт.

6

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

7

87330666

ROLLER THRUST PLATE

1шт.

Выбрано товаров: 7
