(21.140.AE[02]) - VAR - 743507 - TRANSMISSION, GEARS

Запчасти Case IH FARMALL 115C (21.140.AE[02]) - VAR - 743507 - TRANSMISSION, GEARS (21) - TRANSMISSION

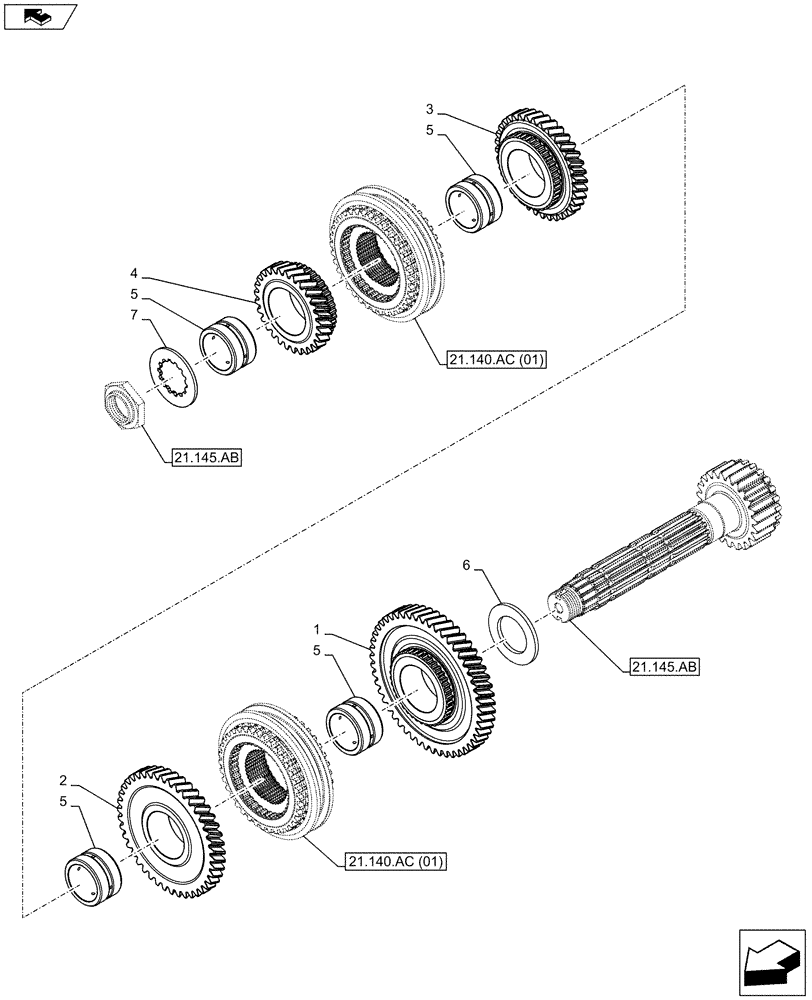

Схема запчастей Case IH FARMALL 115C - (21.140.AE[02]) - VAR - 743507 - TRANSMISSION, GEARS (21) - TRANSMISSION
21.140.ac (01)
5
1
5
5
3
4
7
2
21.140.ac (01)
6
21.145.ab
home
21.145.ab
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5172047

DRIVEN GEAR

1st Speed

1шт.

2

5172048

DRIVEN GEAR

2nd Speed

1шт.

3

5179673

DRIVEN GEAR

3rd Speed

1шт.

4

5172050

DRIVEN GEAR

4th Speed

1шт.

5

5101537

BUSHING,39.2mm ID x 50mm OD x 29.04mm L

4шт.

6

5109656

THRUST WASHER,39.25mm ID x 64mm OD x 4mm Thk

1шт.

7

5122797

THRUST WASHER,35mm ID x 62mm OD x 6mm Thk

1шт.

Выбрано товаров: 7
