(21.140.AE[01]) - VAR - 743507 - TRANSMISSION, GEARS

Запчасти Case IH FARMALL 115C (21.140.AE[01]) - VAR - 743507 - TRANSMISSION, GEARS (21) - TRANSMISSION

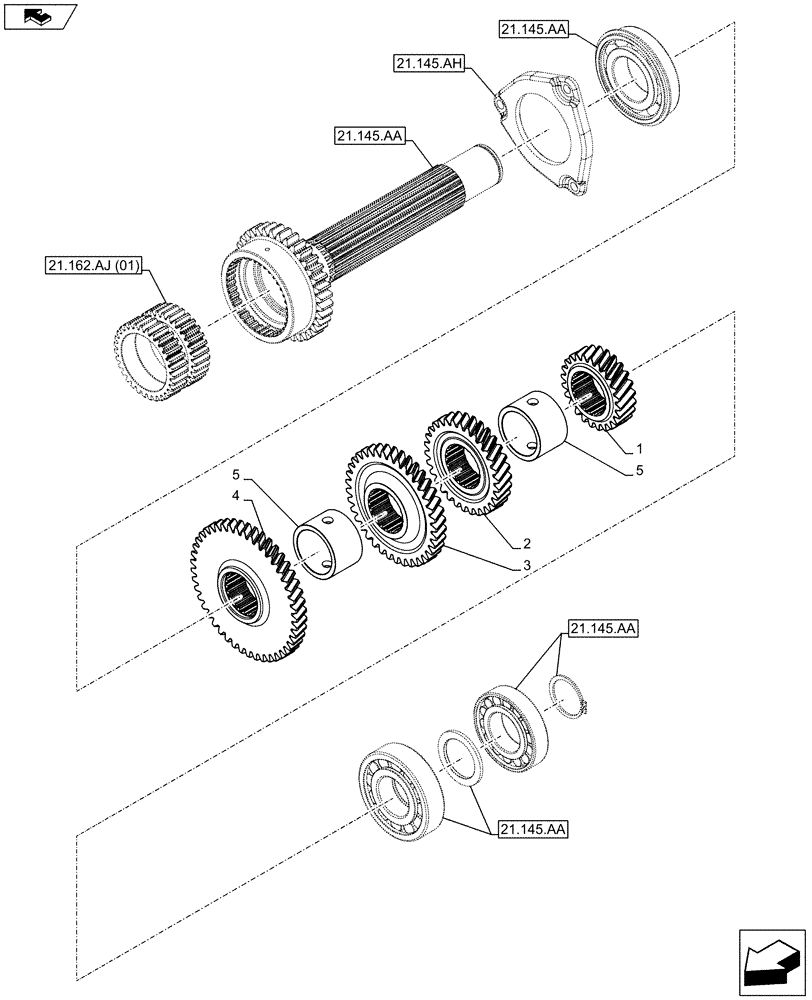

Схема запчастей Case IH FARMALL 115C - (21.140.AE[01]) - VAR - 743507 - TRANSMISSION, GEARS (21) - TRANSMISSION
21.145.ah
21.145.aa
5
2
1
21.162.aj (01)
21.145.aa
home
3
4
21.145.aa
21.145.aa
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5118912

DRIVING GEAR

1st Speed

1шт.

2

5169606

DRIVING GEAR

2nd Speed

1шт.

3

5179672

DRIVING GEAR

3rd Speed

1шт.

4

84238571

GEAR

4th Speed

1шт.

5

5111983

SPACER,44.55mm ID x 55mm OD x 35mm L

2шт.

Выбрано товаров: 5
