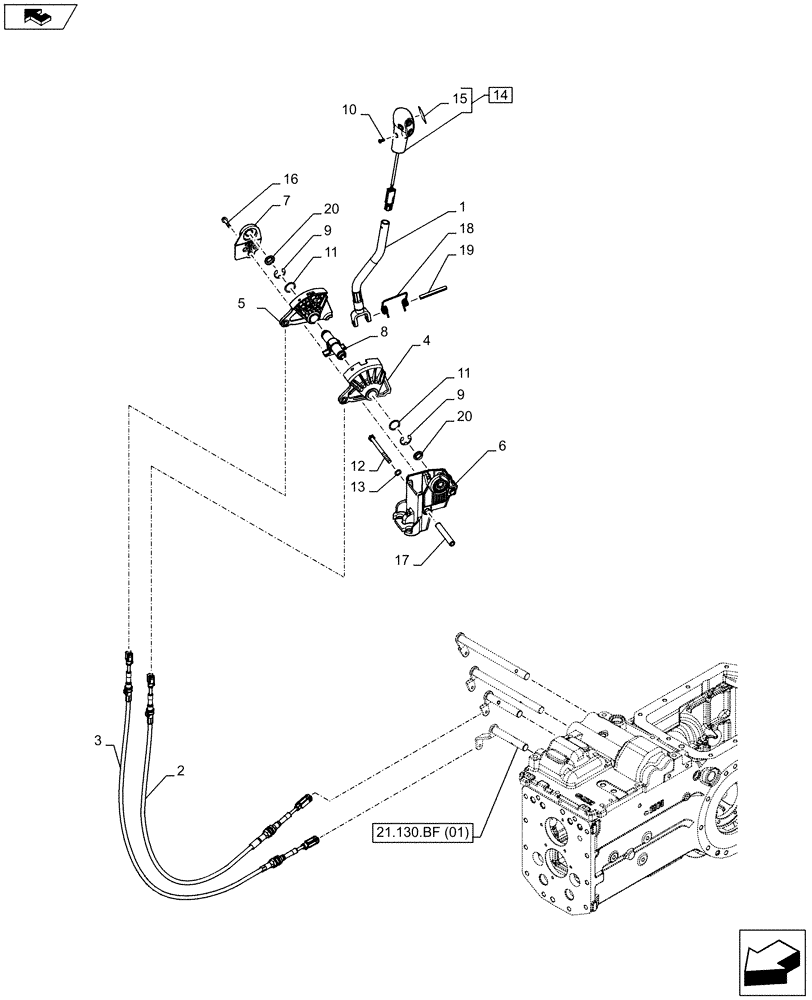

Запчасти Case IH FARMALL 115C (21.130.BC[08]) - VAR - 744761, 744762, 744763 - GEARSHIFT, CONTROL LEVER (21) - TRANSMISSION

1

84535356

LEVER

1шт.

2

47384410

FLEXIBLE LINK

1шт.

3

47384416

FLEXIBLE LINK

1шт.

4

84338368

SUPPORT

1шт.

5

84338369

SUPPORT

1шт.

6

84338365

SUPPORT

1шт.

7

84478538

SUPPORT

1шт.

8

84338367

SHAFT

1шт.

9

16165174

CIRCLIP,M16

2шт.

10

13310977

SCREW,Pozidriv Oval Hd, Csk, M5 x 14mm, Full Thd, SST

1шт.

11

84583037

WASHER,22.5mm ID x 30mm OD x 1mm Thk

2шт.

12

86980390

BOLT,Hex, M8 x 100mm, Cl 8.8

4шт.

13

10284460

WASHER,M10.2 x 16 x 1.5, Copper

4шт.

14

84399104

KNOB

Assy, Incl 10, 15

1шт.

15

84381847

COVER

1шт.

16

15926104

SELF-TAP SCREW,ST 6.3 x 32 Type AB, HTS DAC

2шт.

17

84338346

SPACER,8mm ID x 13mm OD x 81mm L

2шт.

18

84325171

SPRING

1шт.

19

14607870

LOCK PIN,M8 x 70, Slotted

1шт.

20

84295357

BUSHING,16mm ID x 24mm OD x 6mm L

2шт.
