(21.112.AC[03]) - VAR - 744761 - TRANSMISSION HOUSING (12X12, 20X12)

Запчасти Case IH FARMALL 115C (21.112.AC[03]) - VAR - 744761 - TRANSMISSION HOUSING (12X12, 20X12) (21) - TRANSMISSION

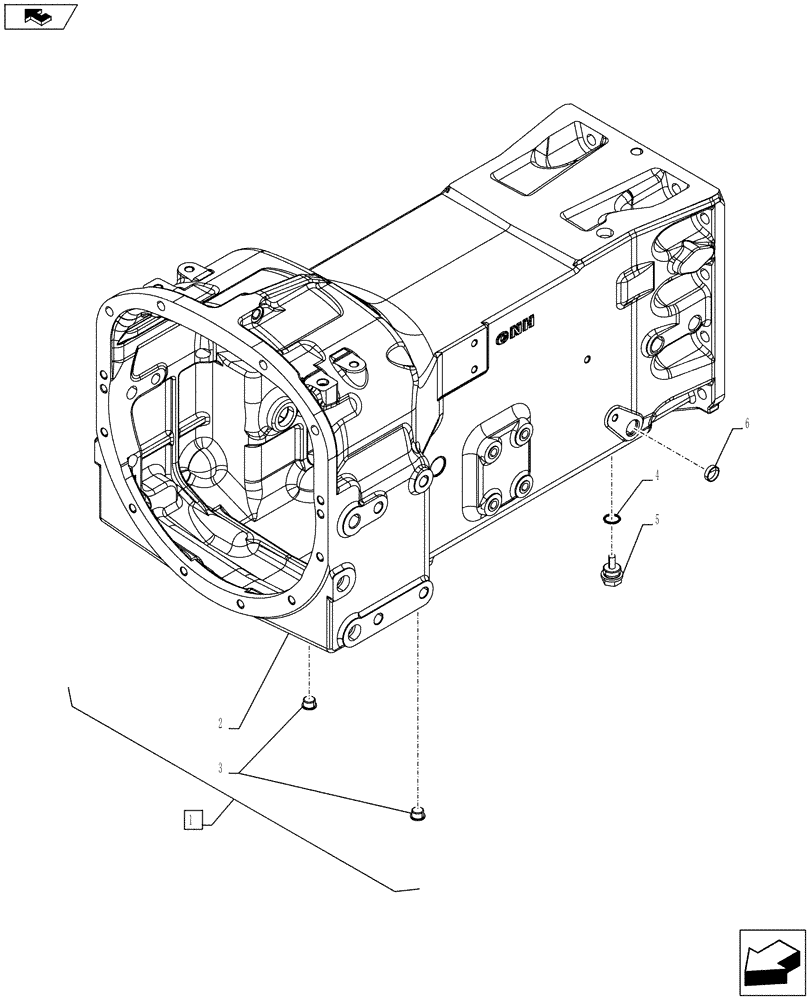

Схема запчастей Case IH FARMALL 115C - (21.112.AC[03]) - VAR - 744761 - TRANSMISSION HOUSING (12X12, 20X12) (21) - TRANSMISSION
1
4
5
2
home
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

ASSY, Housing, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

3

590353

PLUG,15mm OD x 10mm High, Plastic

2шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

5

87584549

PLUG

1шт.

6

14328701

PLUG,M20, Tapered

1шт.
