Запчасти Case IH FARMALL 115C (21.109.AK) - VAR - 743524 - OIL COOLER (21) - TRANSMISSION

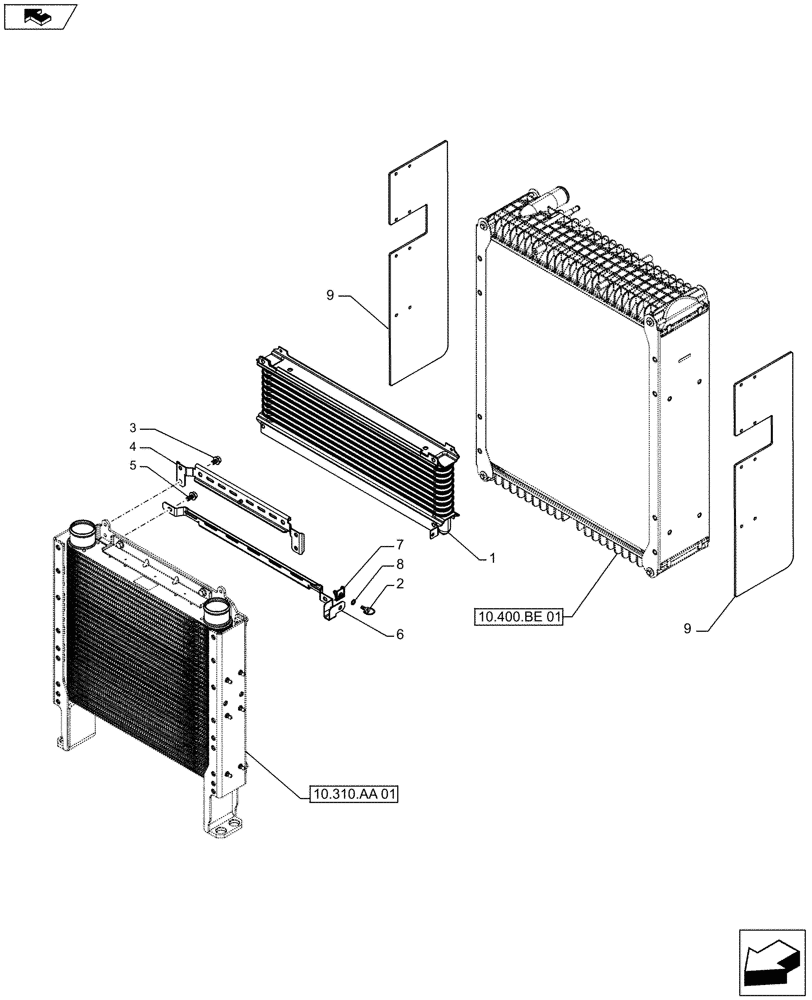

Схема запчастей Case IH FARMALL 115C - (21.109.AK) - VAR - 743524 - OIL COOLER (21) - TRANSMISSION
10.310.aa 01
2
home
1
8
5
7
3
4
6
9
9
10.400.be 01

Артикул

Название

Примечание

Количество

1

84361241

OIL COOLER,210MM X 560MM

1шт.

2

87614935

STUD,6mm OD

Male

1шт.

3

16281924

FLANGE BOLT,Hvy Hex, M8 x 14mm, Cl 8.8, Full Thd

2шт.

4

84467142

SUPPORT

Transmission Oil Cooler

1шт.

5

16287021

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

6

84473133

SUPPORT

Transmission Oil Cooler

1шт.

7

82004582

CLIP,Square, 25mm

Staple

1шт.

8

82004583

RETAINER,6.3mm ID x 12.5mm OD x 0.5mm Thk

Ring

1шт.

9

47417966

SEAL,548mm L

2шт.

Выбрано товаров: 9
