Запчасти Case IH FARMALL 115C (21.104.AP) - VAR - 744762, 744763, 744764 - TRANSMISSION OIL FILTER (21) - TRANSMISSION

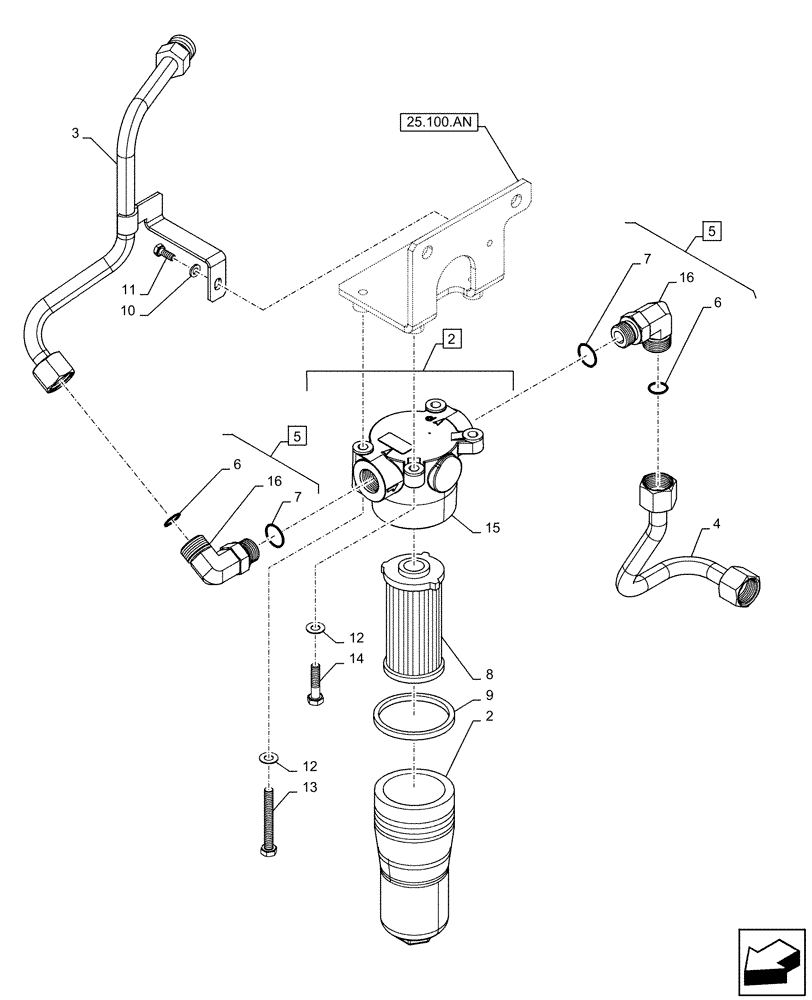

Схема запчастей Case IH FARMALL 115C - (21.104.AP) - VAR - 744762, 744763, 744764 - TRANSMISSION OIL FILTER (21) - TRANSMISSION
16
5
12
10
2
2
13
16
12
7
6
5
8
4
14
7
9
6
11
3
25.100.an
15

Артикул

Название

Примечание

Количество

1

5197006

FILTER

Assembly, Incl 2, 9, 8, 15

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

3

47458905

PIPE

Lube

1шт.

4

47458907

PIPE

Lube

1шт.

5

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Incl 6 - 7, 16

2шт.

6

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

7

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

8

5194879

ELEMENT

Transmission Oil Filter

1шт.

9

5194880

O-RING KIT

Filter Seals

1шт.

10

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

1шт.

11

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

12

12602474

WAVE WASHER,Wave, M8.3

4шт.

13

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

2шт.

14

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

15

NSS

NOT SOLD SEPARAT

Filter Head, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Elbow, Incl in 5

1шт.

Выбрано товаров: 16
